Product CatalogPart Number
JS1F-B-48V-F
Manufacturer
Panasonic Electric WorksDescription
RELAY GEN PURPOSE SPDT 10A 48V
Datasheet
DatasheetPackage
-
In Stock
80,482 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
JS1F-B-48V-F
JS1F-B-48V-F

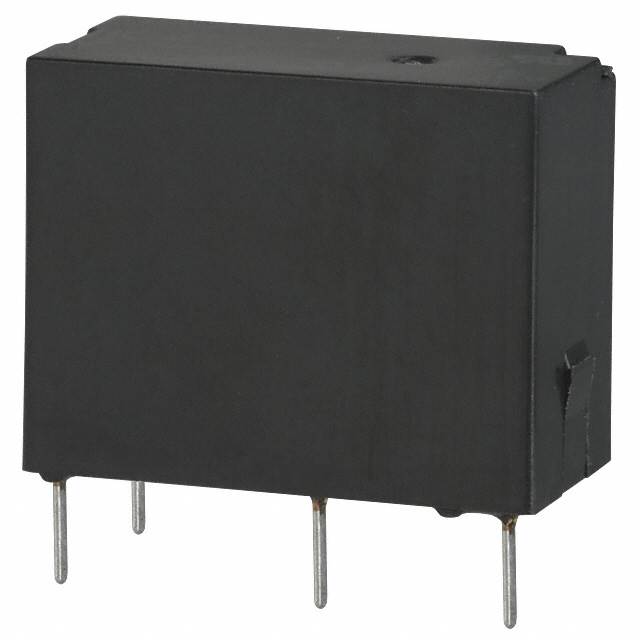

lmages are for reference only.Payment Methods
Delivery Services
General Purpose Relay SPDT (1 Form C) 48VDC Coil Through Hole
Quick Inquiry
JS1F-B-48V-F
Specifications
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | Panasonic Electric Works |
| Series | JS |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Mounting Type | Through Hole |
| Coil Voltage | 48VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 250VAC, 100VDC - Max |
| Load - Max Switching | 2500VA, 1000W |
| Coil Current | 7.5 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Flux Protection |
| Coil Insulation | Class B |
| Must Operate Voltage | 33.6 VDC |
| Must Release Voltage | 4.8 VDC |
| Operate Time | 10 ms |
| Release Time | 10 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Approval Agency | CSA, TUV, UR, VDE |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 6.4 kOhms |
| Base Product Number | JS1F-B |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
|
| Part Number | JS1F-B-48V | JS1F-B-12V-F | JS1F-B-18V-F | JS1F-B-24V |
| Manufacturer | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works |
| RoHS Status | RoHS Compliant | RoHS Compliant | ||
| Description | RELAY GEN PURPOSE SPDT 10A 48V | RELAY GEN PURPOSE SPDT 10A 12V | RELAY GEN PURPOSE SPDT 10A 18V | RELAY GEN PURPOSE SPDT 10A 24V |
| Series | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works |
| Packaging | Bulk | Tray | Bulk | Bulk |
