Product CatalogPart Number
JST1103S-2
Manufacturer
JS SWITCHDescription
SWITCH TACTILE SPST-NO 0.05A 12V
Datasheet
DatasheetPackage
-
In Stock
107,315 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
JST1103S-2
JST1103S-2
lmages are for reference only.Payment Methods
Delivery Services
Tactile Switch SPST-NO Top Actuated Surface Mount
Quick Inquiry
JST1103S-2
Specifications
| Category | Switches - Tactile Switches - |
| Manufacturer | JS SWITCH |
| Series | JST |
| Packaging | Spool |
| RoHS Status | ROHS3 Compliant |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Contact Rating @ Voltage | 0.05A @ 12VDC |
| Actuator Type | Round Button |
| Mounting Type | Surface Mount |
| Actuator Height off PCB, Vertical | 4.30mm |
| Actuator Length, Right Angle | - |
| Actuator Orientation | Top Actuated |
| Termination Style | Gull Wing |
| Outline | 12.00mm x 12.00mm |
| Illumination | Non-Illuminated |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
| Operating Force | 160gf |
| Ingress Protection | - |
| Features | - |
| Operating Temperature | - |
| Actuator Material | - |
| Switch Travel | 0.30mm |
| Mechanical Life | 80,000 Cycles |
| Base Product Number | JST1103 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | JST1103S-3 | JST1103-2 | JST1103A-2 | JST1103A-3 |
| Manufacturer | JS SWITCH | JS SWITCH | JS SWITCH | JS SWITCH |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SWITCH TACTILE SPST-NO 0.05A 12V | SWITCH TACTILE SPST-NO 0.05A 12V | SWITCH TACTILE SPST-NO 0.05A 12V | SWITCH TACTILE SPST-NO 0.05A 12V |
| Series | JST | JST | JST | JST |
| Packaging | Spool | Bulk | Bulk | Bulk |
Customers Also Interested in
Recommended Products
JST1103-2
JS SWITCH
JST1103A-2
JS SWITCH
JST1103A-3
JS SWITCH
JST1103B-2
JS SWITCH
JST1103B-3
JS SWITCH
JST1103D-1
JS SWITCH
JST1103D-2
JS SWITCH
JST1103D-3
JS SWITCH
JST1103F-2
JS SWITCH

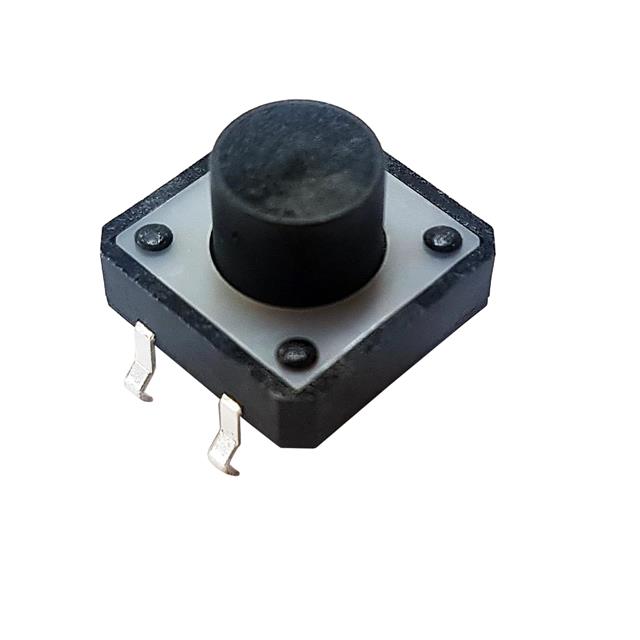

JST1103FH-2
