JWD-172-4
lmages are for reference only.JWD-172-4

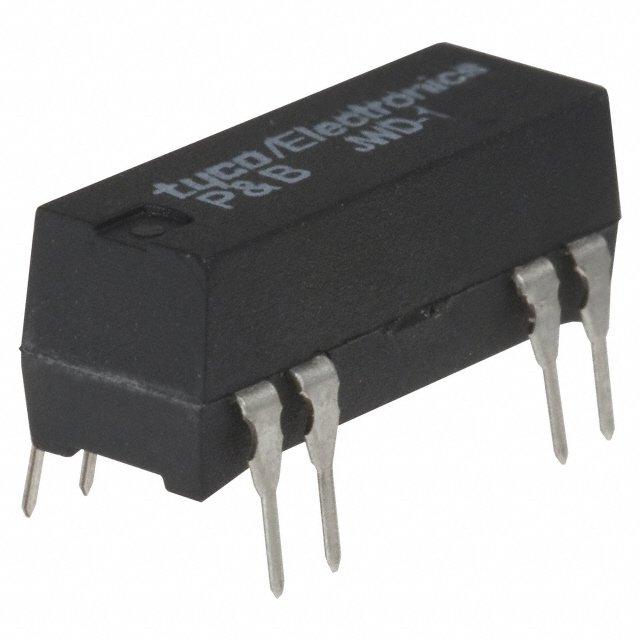

RELAY REED SPDT 500MA 24V
Datasheet-
20,706 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
JWD-172-4
| Category | Relays - Reed Relays - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | JWD |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 500 mA |
| Switching Voltage | 28VDC - Max |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | - |
| Must Operate Voltage | 19.2 VDC |
| Must Release Voltage | 2 VDC |
| Operating Temperature | -35°C ~ 85°C |
| Contact Material | Ruthenium (Ru) |
| Coil Resistance | 2.2 kOhms |
| Coil Current | 10.9 mA |
| Operate Time | 1.5 ms |
| Release Time | 3 ms |
| Base Product Number | JWD-172 |
| Product Attribute |  |
 |
 |
 |
| Part Number | JWD-172-1 | JWD-172-155 | JWD-172-158 | JWD-172-159 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RELAY REED SPDT 500MA 5V | RELAY REED SPDT 500MA 5V | RELAY REED SPDT 500MA 24V | RELAY REED SPDT 500MA 5V |
| Series | JWD | JWD | JWD | JWD |
| Packaging | Tube | Tube | Tube | Tube |
