Product CatalogPart Number
K1126327
Manufacturer
TE Connectivity Deutsch ConnectorsDescription
RELAY 29-121-12
Datasheet
DatasheetPackage
-
In Stock
20,648 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
K1126327
K1126327
lmages are for reference only.Payment Methods
Delivery Services
General Purpose Relay SPDT (1 Form C) 24VDC Coil Chassis Mount
Quick Inquiry
K1126327
Specifications
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Deutsch Connectors |
| Series | 29, KISSLING |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Chassis Mount |
| Coil Voltage | 24VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 120 A |
| Switching Voltage | - |
| Load - Max Switching | - |
| Coil Current | 350 mA |
| Coil Type | Non Latching |
| Features | Diode |
| Termination Style | Screw Terminal |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 4 VDC |
| Operate Time | 35 ms |
| Release Time | 15 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Approval Agency | - |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 80 Ohms |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
 |

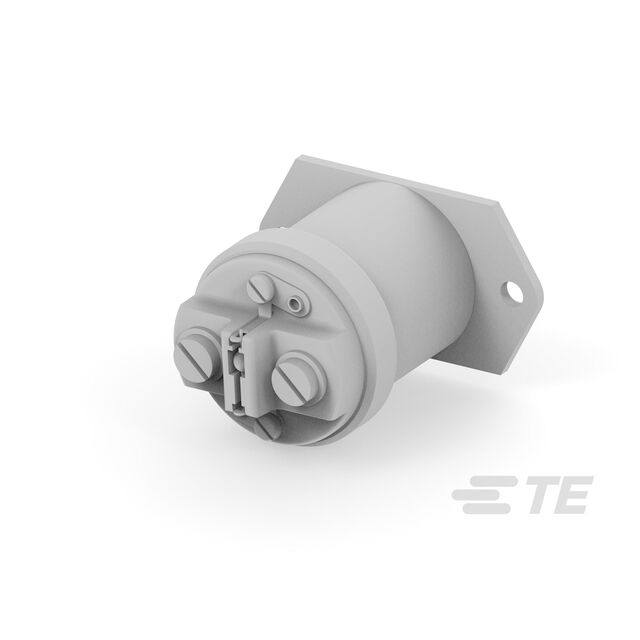

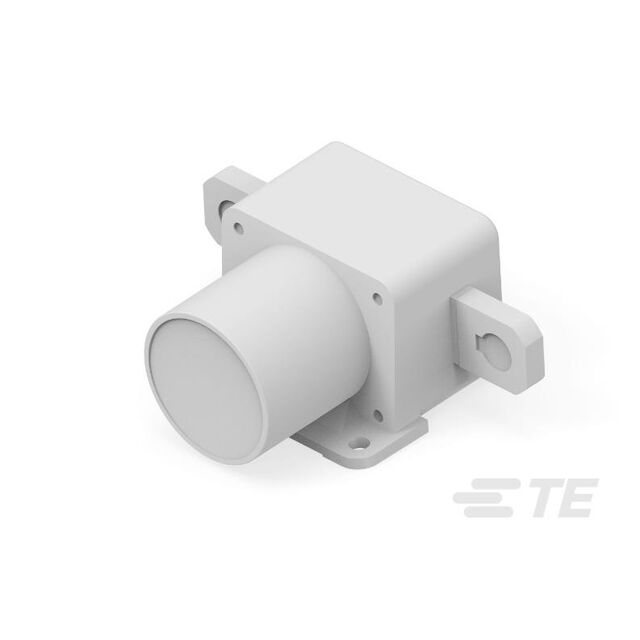

| Part Number | K10-1036 | K10-1041 | K1008006 | K1013134 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Deutsch Connectors | TE Connectivity Deutsch Connectors |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RELAY GEN PURPOSE DPDT 15A | RELAY GEN PURPOSE DPDT 15A | RELAY 26-71-01 | RELAY 26-06-01 |
| Series | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Deutsch Connectors | TE Connectivity Deutsch Connectors |
| Packaging | Bulk | Bulk | Bulk | Bulk |
