K12MT-12A-P
lmages are for reference only.K12MT-12A-P
NON-ISOLATED POL MODULE DC DC CO
Datasheet17-SMD Module
76,147 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 5.5V 12A 4.5V - 14.4V Input
K12MT-12A-P
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Mornsun America, LLC |
| Series | |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 14.4V |
| Voltage - Output 1 | 0.6 ~ 5.5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 12A |
| Power (Watts) | 66 W |
| Applications | ITE (Commercial) |
| Features | Adjustable Output, Remote On/Off |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 95% |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 17-SMD Module |
| Size / Dimension | 0.48" L x 0.48" W x 0.34" H (12.2mm x 12.2mm x 8.5mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active High |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | - |
| Voltage - Isolation | - |
| Product Attribute |  |
 |
 |
 |

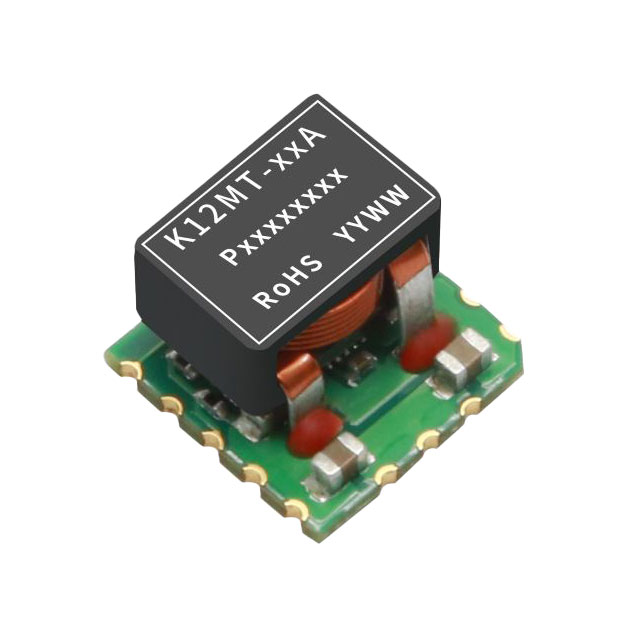

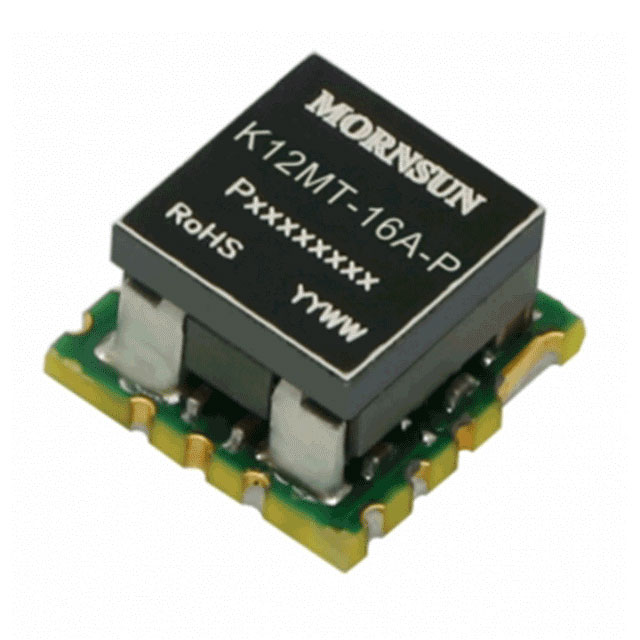

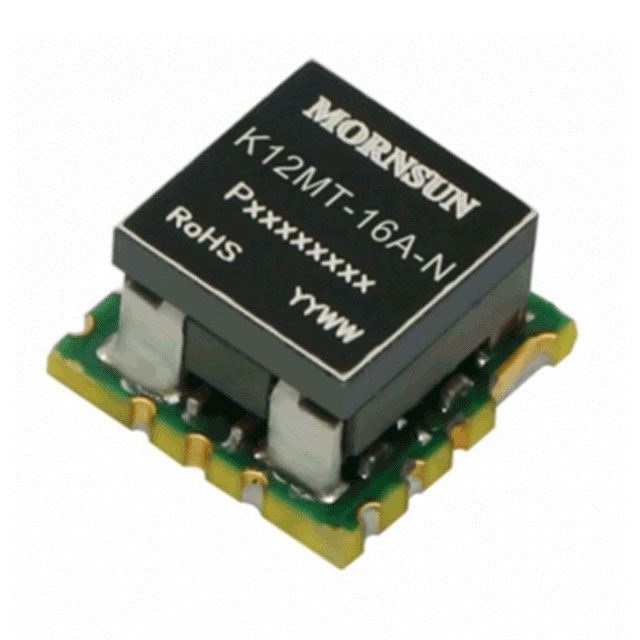

| Part Number | K12MT-12A-N | K12MT-16A-N | K12MT-16A-P | K12MT-6A-P |
| Manufacturer | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | NON-ISOLATED POL MODULE DC DC CO | NON-ISOLATED POL MODULE DC DC CO | NON-ISOLATED POL MODULE DC DC CO | NON-ISOLATED POL MODULE DC DC CO |
| Series | ||||
| Packaging | K12MT-12A | K12MT-16A | K12MT-16A | K12MT-6A |
