K224Z15Y5VE5TL2
lmages are for reference only.K224Z15Y5VE5TL2
CAP CER 0.22UF 25V Y5V RADIAL
DatasheetRadial
84,735 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
0.22 µF -20%, +80% 25V Ceramic Capacitor Y5V (F) Radial
K224Z15Y5VE5TL2
| Category | Capacitors - Ceramic Capacitors - |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components |
| Series | Mono-Kap™ K |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS non-compliant |
| Capacitance | 0.22 µF |
| Tolerance | -20%, +80% |
| Voltage - Rated | 25V |
| Temperature Coefficient | Y5V (F) |
| Operating Temperature | -30°C ~ 85°C |
| Features | - |
| Ratings | - |
| Applications | General Purpose |
| Failure Rate | - |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.157" L x 0.102" W (4.00mm x 2.60mm) |
| Height - Seated (Max) | 0.220" (5.60mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.098" (2.50mm) |
| Lead Style | Straight |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

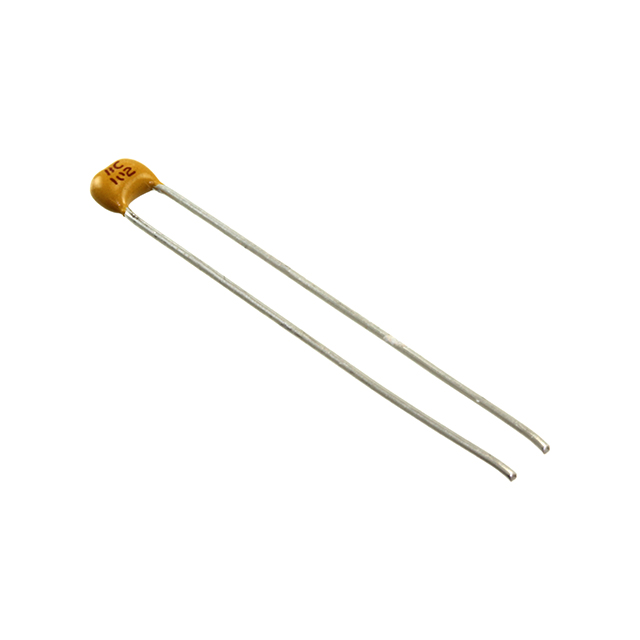

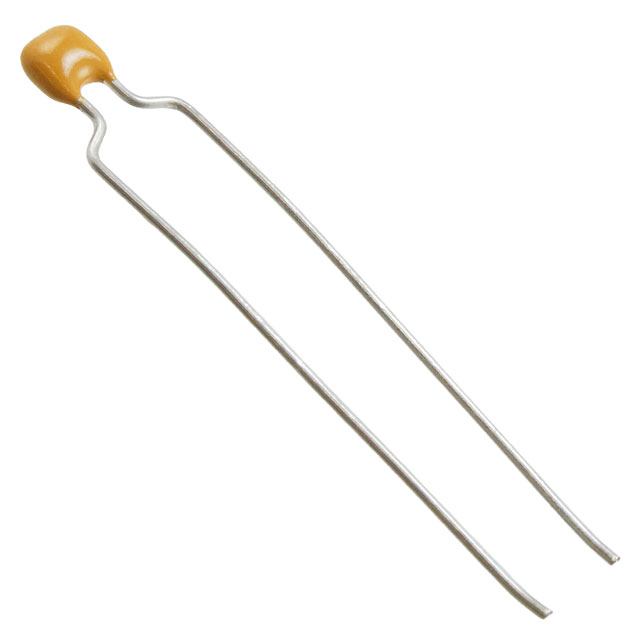

| Part Number | K224Z15Y5VE5TH5 | K224Z15Y5VF53L2 | K224Z15Y5VF5TL2 | K224Z15Y5VF5UL2 |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP CER 0.22UF 25V Y5V RADIAL | CAP CER 0.22UF 50V Y5V RADIAL | CAP CER 0.22UF 50V Y5V RADIAL | CAP CER 0.22UF 50V Y5V RADIAL |
| Series | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Box (TB) |
