K43B332
lmages are for reference only.K43B332
K43B332=RELAY, VACUUM, SPST-NC
Datasheet-
14,217 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay SPST-NC (1 Form B) 26.5VDC Coil Chassis Mount
K43B332
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Aerospace, Defense and Marine |
| Series | K43, KILOVAC |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Chassis Mount |
| Coil Voltage | 26.5VDC |
| Contact Form | SPST-NC (1 Form B) |
| Contact Rating (Current) | 25 A |
| Switching Voltage | 10000VDC - Nom |
| Load - Max Switching | - |
| Coil Current | 91.4 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Wire Leads |
| Seal Rating | Sealed - Vacuum |
| Coil Insulation | - |
| Must Operate Voltage | 16 VDC |
| Must Release Voltage | 1 VDC |
| Operate Time | 10 ms |
| Release Time | 10 ms |
| Operating Temperature | -55°C ~ 125°C |
| Contact Material | - |
| Approval Agency | - |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 290 Ohms |
| Base Product Number | K43B3 |
| Product Attribute |  |
|
 |
|

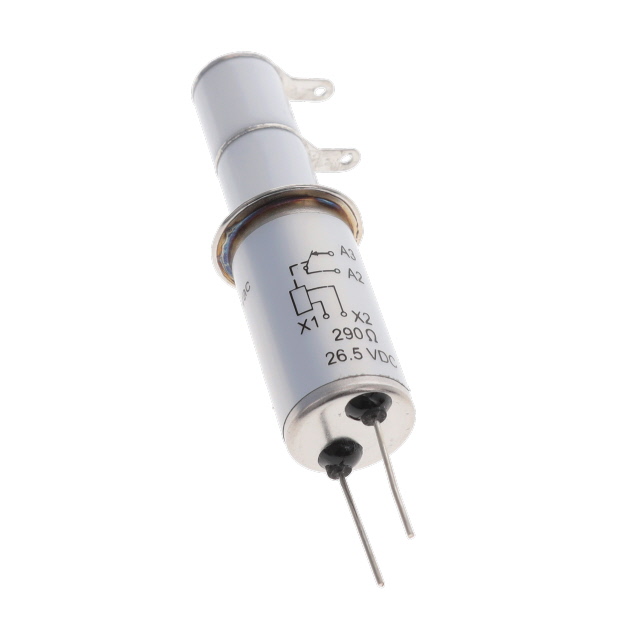

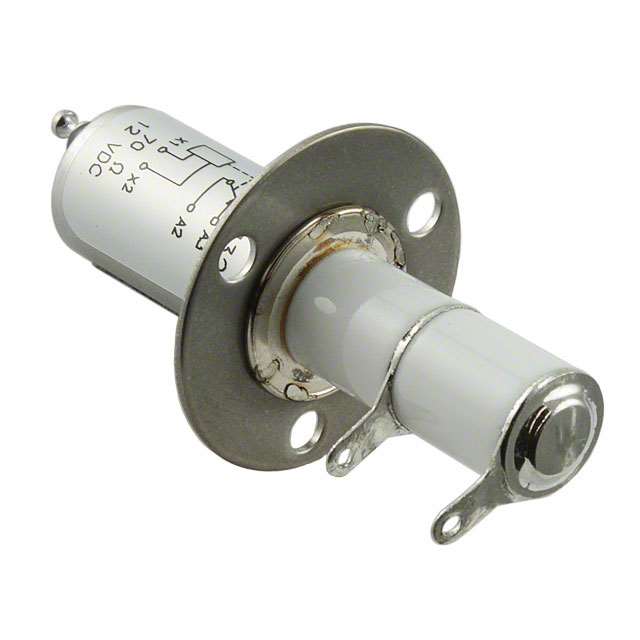

| Part Number | K43B334 | K43B234 | K43B732 | K43B734 |
| Manufacturer | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | K43B334=RELAY, VACUUM, SPST-NC | K43B234=RELAY, VACUUM, SPST-NC | RELAY GEN PURPOSE SPST 25A 12V | RELAY GEN PURPOSE SPST 12V |
| Series | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine |
| Packaging | Bulk | Bulk | Bulk | Bulk |
