K561J15C0GF5UH5

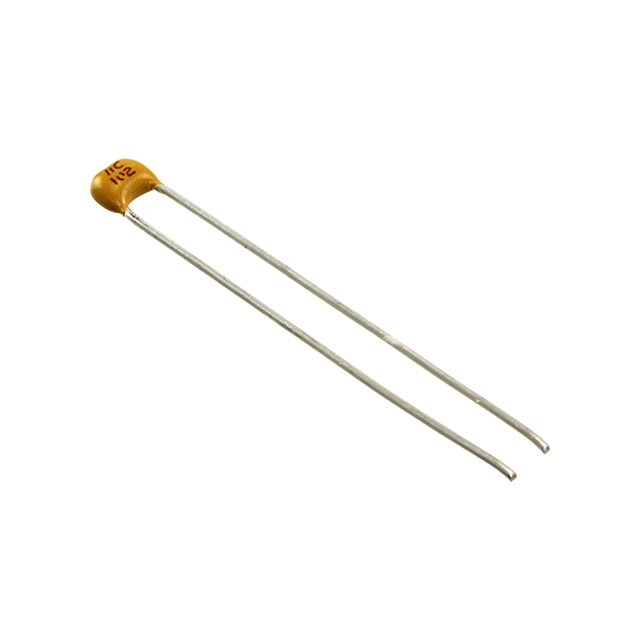

lmages are for reference only.K561J15C0GF5UH5
CAP CER 560PF 50V C0G/NP0 RADIAL
DatasheetRadial
67,967 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
560 pF ±5% 50V Ceramic Capacitor C0G, NP0 Radial
K561J15C0GF5UH5
| Category | Capacitors - Ceramic Capacitors - |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components |
| Series | Mono-Kap™ K |
| Packaging | Tape & Box (TB) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 560 pF |
| Tolerance | ±5% |
| Voltage - Rated | 50V |
| Temperature Coefficient | C0G, NP0 |
| Operating Temperature | -55°C ~ 125°C |
| Features | - |
| Ratings | - |
| Applications | General Purpose |
| Failure Rate | - |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.157" L x 0.102" W (4.00mm x 2.60mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.197" (5.00mm) |
| Lead Style | Formed Leads |
| Height - Seated (Max) | 0.260" (6.60mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | K561J15C0GF53H5 | K561J15C0GF53L2 | K561J15C0GF5TH5 | K561J15C0GF5TL2 |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP CER 560PF 50V C0G/NP0 RADIAL | CAP CER 560PF 50V C0G/NP0 RADIAL | CAP CER 560PF 50V C0G/NP0 RADIAL | CAP CER 560PF 50V C0G/NP0 RADIAL |
| Series | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | |
| Packaging | Bulk | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
