K681K15X7RH5TL2

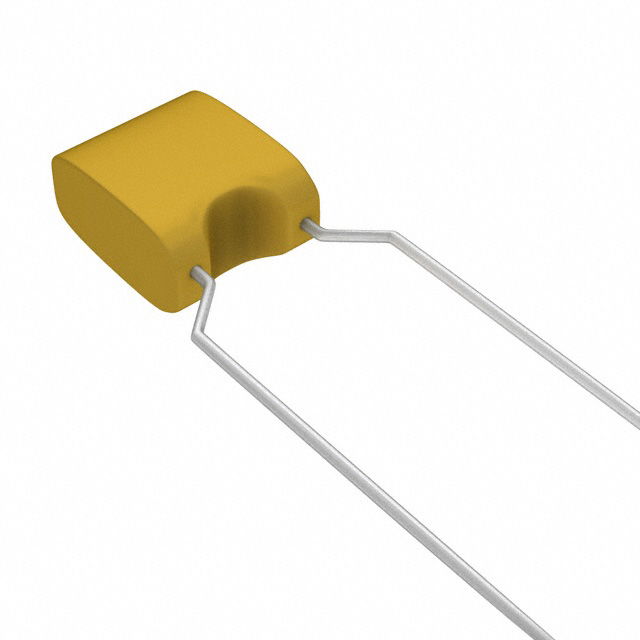

lmages are for reference only.K681K15X7RH5TL2
CAP CER 680PF 100V X7R RADIAL
DatasheetRadial
23,503 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
680 pF ±10% 100V Ceramic Capacitor X7R Radial
K681K15X7RH5TL2
| Category | Capacitors - Ceramic Capacitors - |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components |
| Series | |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Mfr | Vishay Beyschlag/Draloric/BC Components |
| Series | Mono-Kap™ K |
| Capacitance | 680 pF |
| Tolerance | ±10% |
| Voltage - Rated | 100V |
| Temperature Coefficient | X7R |
| Operating Temperature | -55°C ~ 125°C |
| Features | - |
| Ratings | - |
| Applications | General Purpose |
| Failure Rate | - |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.157" L x 0.102" W (4.00mm x 2.60mm) |
| Height - Seated (Max) | 0.220" (5.60mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.098" (2.50mm) |
| Lead Style | Straight |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | K681K15X7RH53H5 | K681K15X7RH53L2 | K681K15X7RH5TH5 | K681K15X7RH5UH5 |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP CER 680PF 100V X7R RADIAL | CAP CER 680PF 100V X7R RADIAL | CAP CER 680PF 100V X7R RADIAL | CAP CER 680PF 100V X7R RADIAL |
| Series | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | |
| Packaging | Bulk | Tape & Reel (TR) | Tape & Box (TB) |
