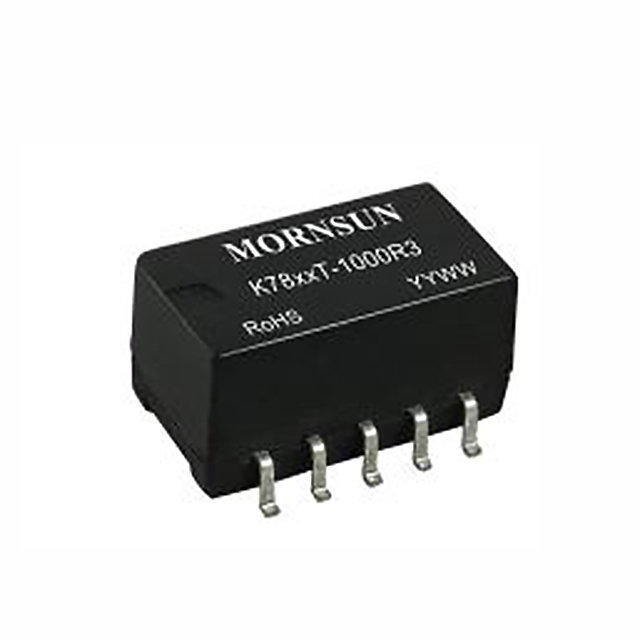

K7802T-1000R3-TR
lmages are for reference only.K7802T-1000R3-TR
DC DC CONVERTER 2.5V 2.5W
Datasheet10-SMD Module, 8 Leads
74,302 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Regulator Replacement DC DC Converter 1 Output 2.5V 1A 4.75V - 32V Input
K7802T-1000R3-TR
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Mornsun America, LLC |
| Series | |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS Compliant |
| Type | Linear Regulator Replacement |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.75V |
| Voltage - Input (Max) | 32V |
| Voltage - Output 1 | 2.5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 1A |
| Power (Watts) | 2.5 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, SCP |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 86% |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 10-SMD Module, 8 Leads |
| Size / Dimension | 0.60" L x 0.33" W x 0.32" H (15.2mm x 8.5mm x 8.3mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE |
| Standard Number | - |
| Base Product Number | - |
| Voltage - Isolation | - |
| Product Attribute |  |
 |
|
 |
| Part Number | K7802T-1000R3 | K7802T-500R3 | K7802T-500R3-TR | K12MT-12A-N |
| Manufacturer | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 2.5V 2.5W | DC DC CONVERTER 2.5V 1.25W | DC DC CONVERTER 2.5V 1.25W | NON-ISOLATED POL MODULE DC DC CO |
| Series | ||||
| Packaging | K7802T-1000R3 | K7802T-500R3 | K7802T-500R3 | K12MT-12A |
