Product CatalogPart Number
K78L12-3AR3
Manufacturer
Mornsun America, LLCDescription
DC DC CONVERTER 12V
Datasheet
DatasheetPackage
12-SIP Module
In Stock
51,682 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
K78L12-3AR3
K78L12-3AR3
lmages are for reference only.Payment Methods
Delivery Services
Non-Isolated PoL Module DC DC Converter 1 Output 12V 3A 16V - 36V Input
Quick Inquiry
K78L12-3AR3
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Mornsun America, LLC |
| Series | |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 16V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 3A |
| Power (Watts) | - |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 97% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 12-SIP Module |
| Size / Dimension | 1.20" L x 0.23" W x 0.49" H (30.6mm x 5.8mm x 12.5mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE |
| Standard Number | 62368-1 |
| Base Product Number | - |
| Voltage - Isolation | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

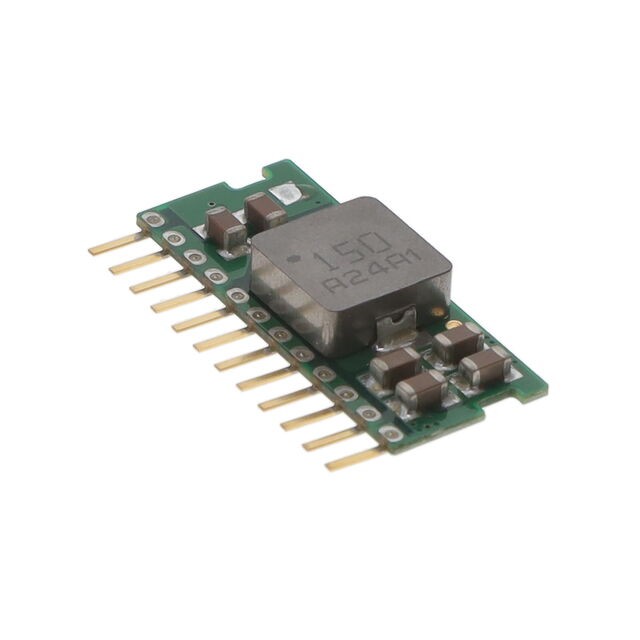

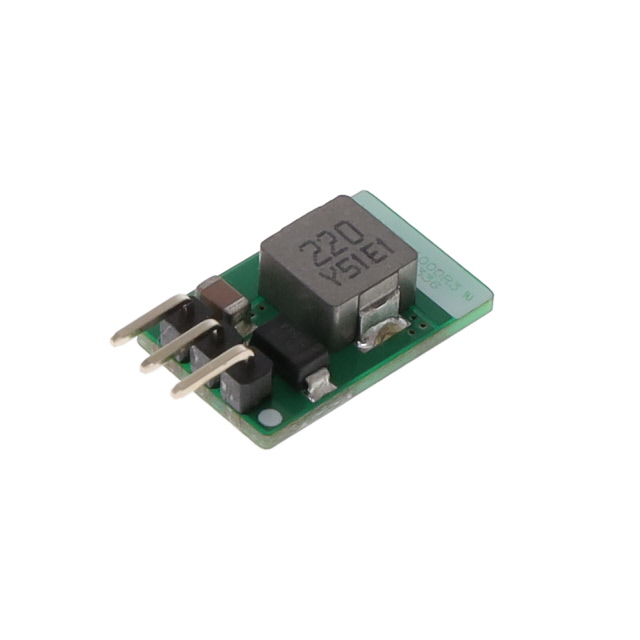

| Part Number | K78L12-1000R3 | K78L12-500R3 | K78L15-1000R3 | K78L15-3AR3 |
| Manufacturer | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC |
| RoHS Status | Not applicable | ROHS3 Compliant | Not applicable | Not applicable |
| Description | DC DC CONVERTER 12V | LINEAR REGULATOR REPLACEMENT DC | DC DC CONVERTER 15V | DC DC CONVERTER 15V |
| Series | ||||
| Packaging | K78Lxx-1000R3 | K78Lxx-500R3 | K78Lxx-1000R3 | K78Lxx-3AR3 |
