K78U03-1000R3L
lmages are for reference only.K78U03-1000R3L
NON-ISOLATED DC DC CONVERTER 1 O
Datasheet3-SIP Module
71,225 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Non-Isolated PoL Module DC DC Converter 1 Output 3.3V 1A 9V - 75V Input
K78U03-1000R3L
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Mornsun America, LLC |
| Series | |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 1A |
| Power (Watts) | - |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Efficiency | 76% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 3-SIP Module |
| Size / Dimension | 0.67" L x 0.48" W x 0.34" H (17.0mm x 12.1mm x 8.6mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | - |
| Voltage - Isolation | - |
| Product Attribute |  |
 |
 |
 |

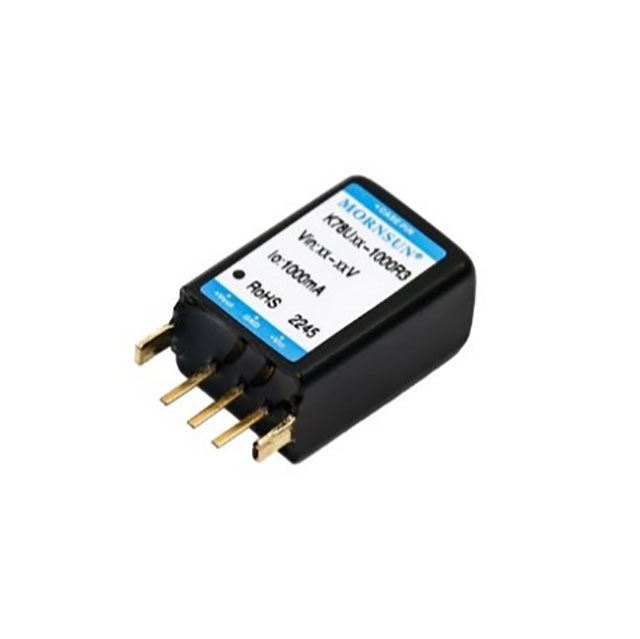

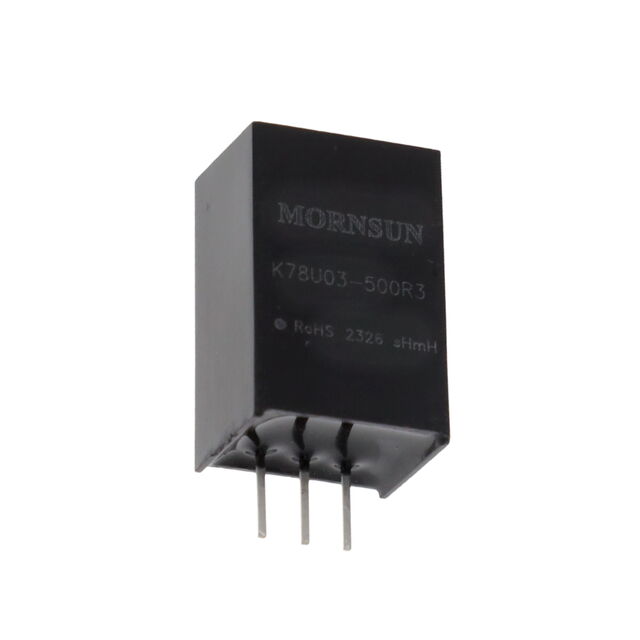

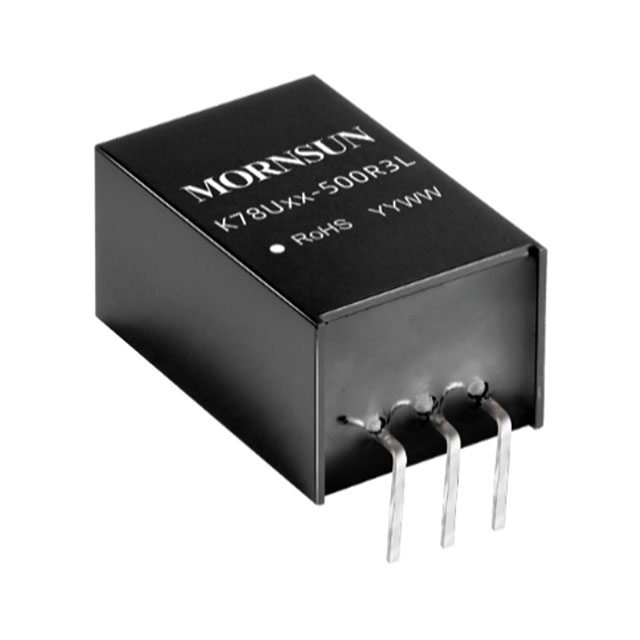

| Part Number | K78U03-1000R3 | K78U03-500R3 | K78U03-500R3L | K78U05-1000R3 |
| Manufacturer | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC |
| RoHS Status | ROHS3 Compliant | Not applicable | ROHS3 Compliant | ROHS3 Compliant |
| Description | NON-ISOLATED POL MODULE DC DC CO | DC/DC CONVERTER 3.3V | LINEAR REGULATOR REPLACEMENT DC | NON-ISOLATED DC DC CONVERTER 1 O |
| Series | ||||
| Packaging | K78Uxx-1000R3 | K78UXX-500R3(L) | K78UXX-500R3L | K78Uxx-1000R3L |
