K822M20X7RL5TH5

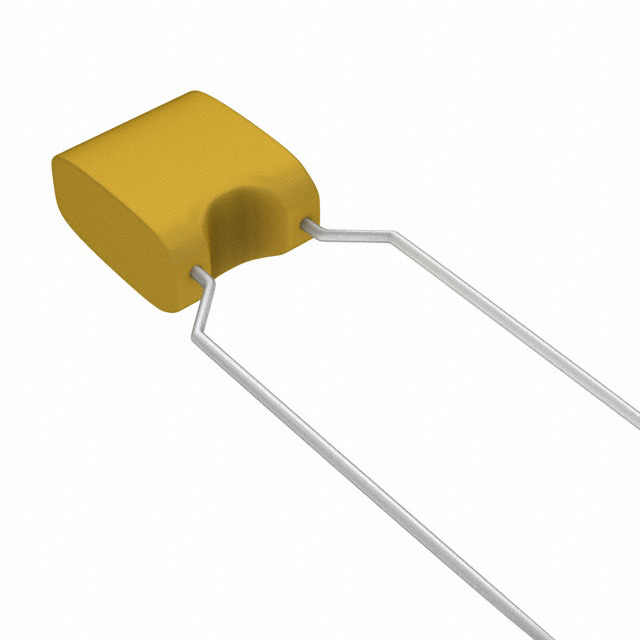

lmages are for reference only.K822M20X7RL5TH5
CAP CER 8200PF 500V X7R RADIAL
DatasheetRadial
28,211 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
8200 pF ±20% 500V Ceramic Capacitor X7R Radial
K822M20X7RL5TH5
| Category | Capacitors - Ceramic Capacitors - |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components |
| Series | Mono-Kap™ K |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 8200 pF |
| Tolerance | ±20% |
| Voltage - Rated | 500V |
| Temperature Coefficient | X7R |
| Operating Temperature | -55°C ~ 125°C |
| Features | - |
| Ratings | - |
| Applications | General Purpose |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| Height - Seated (Max) | 0.299" (7.60mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.197" (5.00mm) |
| Lead Style | Formed Leads |
| Failure Rate | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | K822M20X7RL53H5 | K822M20X7RL5UH5 | K822M10X7RF53H5 | K822M10X7RF53L2 |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP CER 8200PF 500V X7R RADIAL | CAP CER 8200PF 500V X7R RADIAL | CAP CER 8200PF 50V X7R RADIAL | CAP CER 8200PF 50V X7R RADIAL |
| Series | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components |
| Packaging | Bulk | Tape & Box (TB) | Bulk | Bulk |
