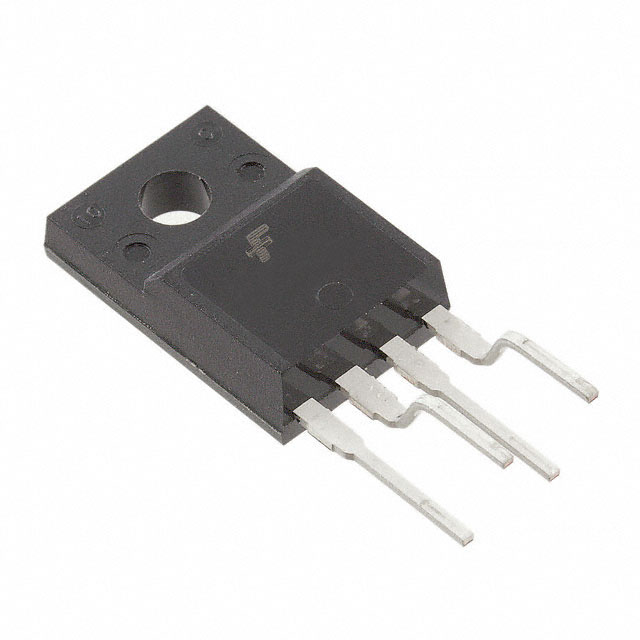

KA5H0165RYDTU
lmages are for reference only.Payment Methods
Delivery Services
Converter Offline Flyback Topology 100kHz TO-220F-4L (Forming)
KA5H0165RYDTU
| Category | Integrated Circuits (ICs) - Power Management PMIC - AC DC Converters-Offline Switches |
| Manufacturer | onsemi |
| Series | FPS™ |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Output Isolation | - |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 650V |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd) | 8.8V ~ 30V |
| Duty Cycle | 67% |
| Frequency - Switching | 100kHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage |
| Control Features | - |
| Operating Temperature | -25°C ~ 85°C (TA) |
| Package / Case | TO-220-4 Full Pack, Formed Leads |
| Supplier Device Package | TO-220F-4L (Forming) |
| Mounting Type | Through Hole |
| Base Product Number | KA5H0165 |
| Voltage - Start Up | 15 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | KA5H0165RN | KA5H0165RTU | KA5H0165RYDTU | KA5H02659RN |
| Manufacturer | onsemi | onsemi | Fairchild Semiconductor | onsemi |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | IC OFFLINE SWITCH FLYBACK 8DIP | IC OFFLINE SW FLBACK TO220F-4L | IC OFFLINE SW FLBACK TO220F-4L | IC OFFLINE SWITCH MULT TOP 8DIP |
| Series | FPS™ | FPS™ | FPS™ | FPS™ |
| Packaging | Tube | Tube | Bulk | Tube |
