Product CatalogPart Number
KAJ08TAGT
Manufacturer
E-SwitchDescription
SWITCH SLIDE DIP SPST 0.025A 24V
Datasheet
DatasheetPackage
-
In Stock
19,373 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
KAJ08TAGT
KAJ08TAGT

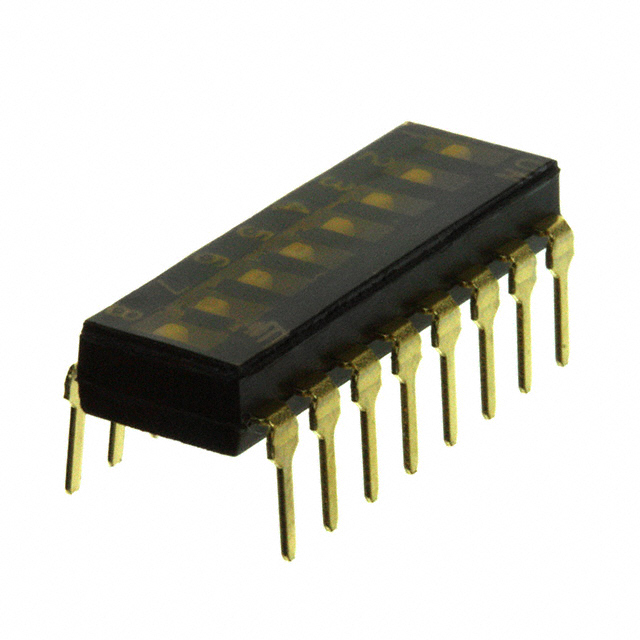

lmages are for reference only.Payment Methods
Delivery Services
Dip Switch SPST 8 Position Through Hole Slide (Standard) Actuator 25mA 24VDC
Quick Inquiry
KAJ08TAGT
Specifications
| Category | Switches - DIP Switches - |
| Manufacturer | E-Switch |
| Series | KAJ |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Circuit | SPST |
| Number of Positions | 8 |
| Current Rating (Amps) | 25mA |
| Voltage Rating | 24VDC |
| Actuator Type | Slide (Standard) |
| Actuator Level | Flush, Recessed |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Height Above Board | 0.142" (3.60mm) |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Pitch | 0.100" (2.54mm), Full |
| Washable | Yes |
| Features | Tape Seal |
| Operating Temperature | -40°C ~ 85°C |
| Body Material | Polyphenylene Sulfide (PPS) |
| Length | 0.800" (20.32mm) |
| Mechanical Life | 2,000 Cycles |
| Electrical Life | 2,000 Cycles |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

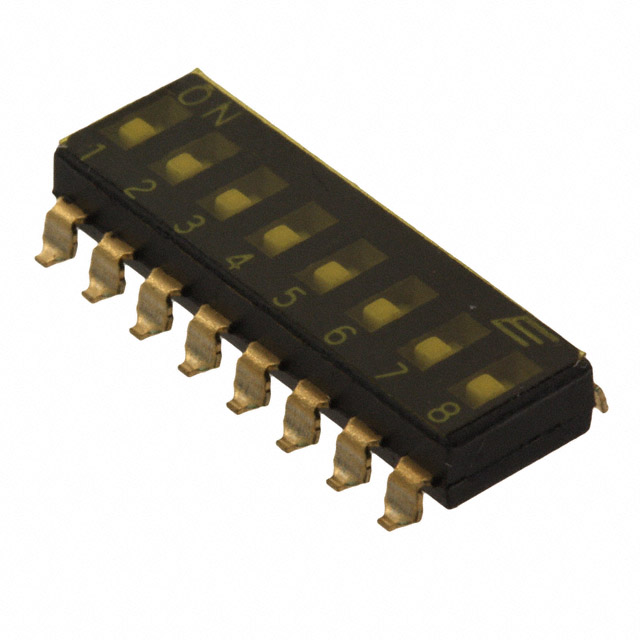

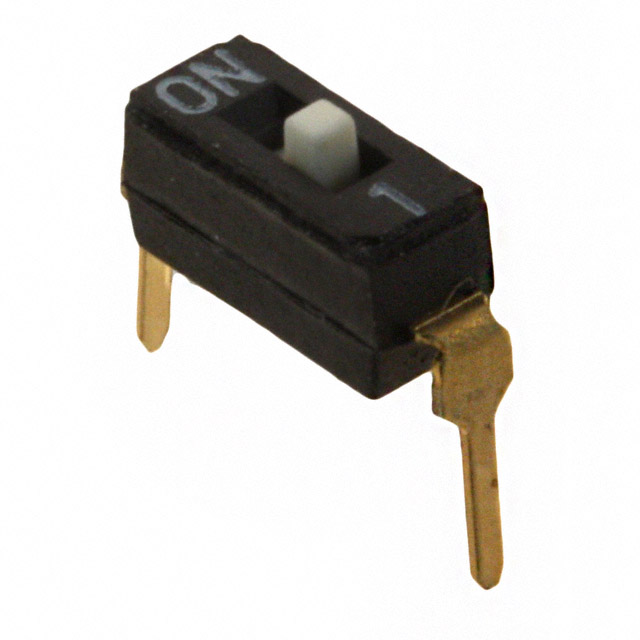

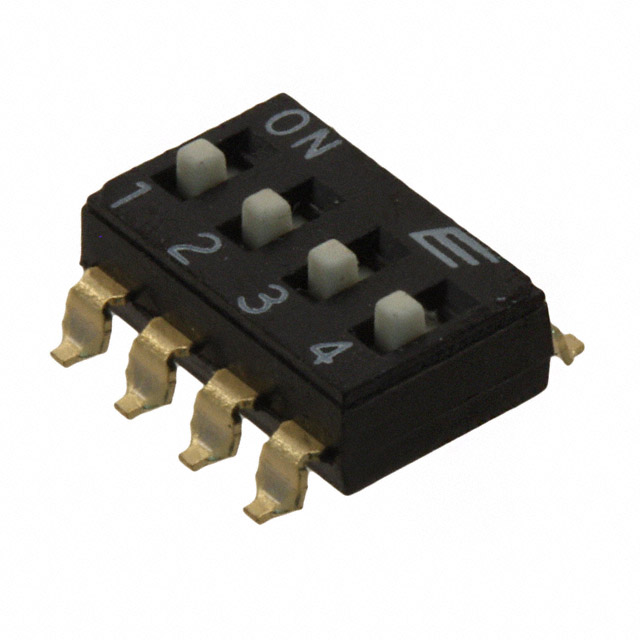

| Part Number | KAJ08TGGR | KAJ08TGGT | KAJ01LAGT | KAJ01SGGT |
| Manufacturer | E-Switch | E-Switch | E-Switch | E-Switch |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SWITCH SLIDE DIP SPST 0.025A 24V | SWITCH SLIDE DIP SPST 0.025A 24V | SWITCH SLIDE DIP SPST 0.025A 24V | SWITCH SLIDE DIP SPST 0.025A 24V |
| Series | KAJ | KAJ | KAJ | KAJ |
| Packaging | Tape & Reel (TR) | Tube | Tube | Tube |
