KBJ2010_T0_00601

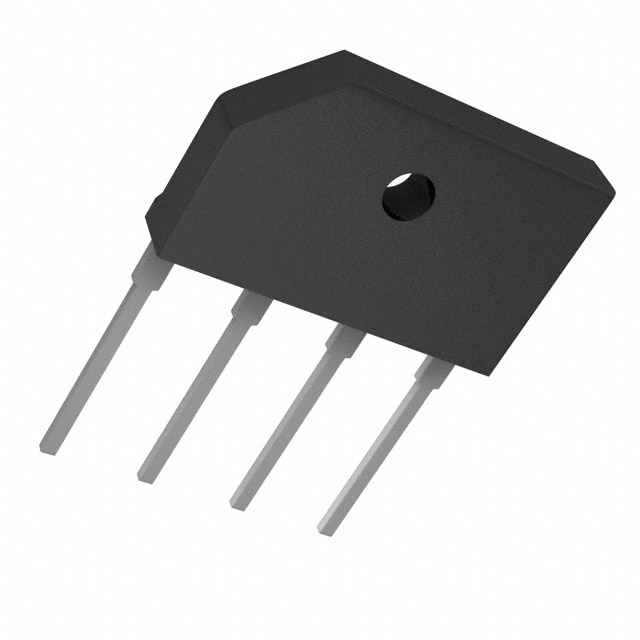

lmages are for reference only.KBJ2010_T0_00601
KBJ PACKAGE, 20A/1000V STANDARD
Datasheet4-SIP, KBJ
56,512 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Bridge Rectifier Single Phase Standard 1 kV Through Hole KBJ
KBJ2010_T0_00601
| Category | Discrete Semiconductor Products - Diodes - Bridge Rectifiers |
| Manufacturer | Panjit International Inc. |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Diode Type | Single Phase |
| Technology | Standard |
| Voltage - Peak Reverse (Max) | 1 kV |
| Current - Average Rectified (Io) | 20 A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 20 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 1 V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 4-SIP, KBJ |
| Supplier Device Package | KBJ |
| Base Product Number | KBJ2010 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | KBPC10/15/2510FP | KBPC1008-G | KBPC3508-G | KBU1006 |
| Manufacturer | Diotec Semiconductor | Comchip Technology | Comchip Technology | GeneSiC Semiconductor |
| RoHS Status | Not applicable | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant |
| Description | 1PH BRIDGE KBPC 1000V 25A | BRIDGE RECT 1PHASE 800V 10A KBPC | BRIDGE RECT 1PHASE 800V 35A KBPC | BRIDGE RECT 1PHASE 600V 10A KBU |
| Series | - | - | - | - |
| Packaging | Box | Bulk | Tray | Bulk |
