KBPC1506W
lmages are for reference only.KBPC1506W
BRIDGE RECTIFIER, GENERAL PURPOS
Datasheet4-Square, KBPC-W
73,706 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Bridge Rectifier Single Phase Standard 600 V Through Hole KBPC-W
KBPC1506W
| Category | Discrete Semiconductor Products - Diodes - Bridge Rectifiers |
| Manufacturer | Good-Ark Semiconductor |
| Series | KBPC15 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Diode Type | Single Phase |
| Technology | Standard |
| Voltage - Peak Reverse (Max) | 600 V |
| Current - Average Rectified (Io) | 15 A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 7.5 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 600 V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 4-Square, KBPC-W |
| Supplier Device Package | KBPC-W |
| Base Product Number | KBPC1506 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|

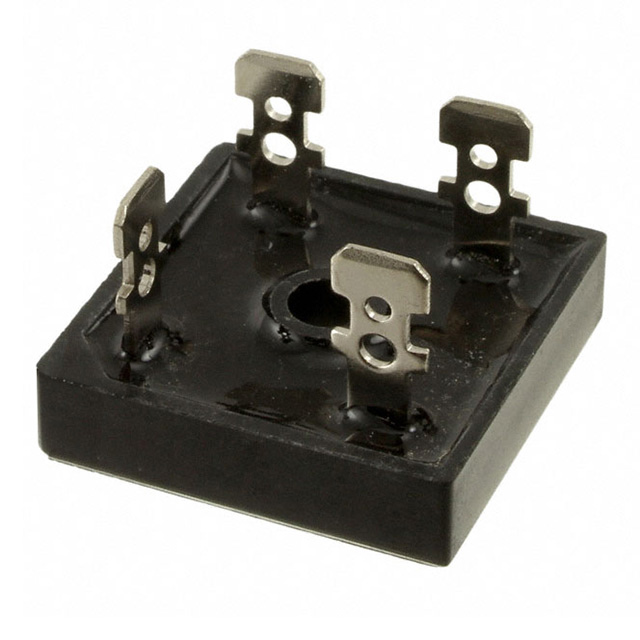

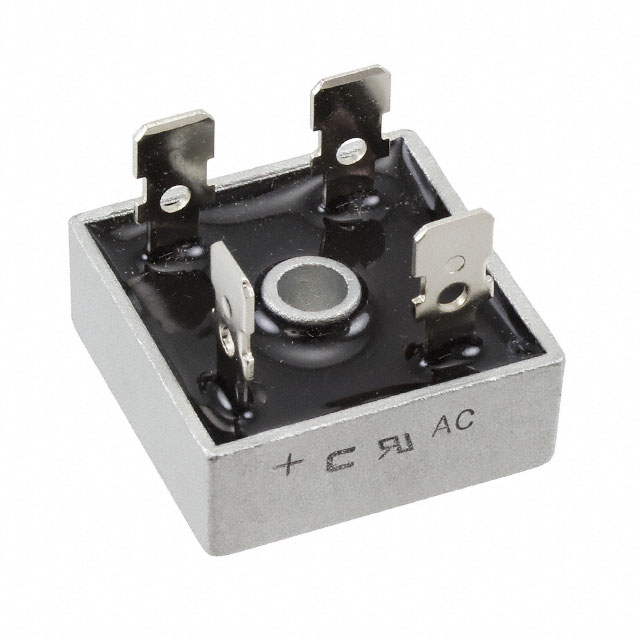

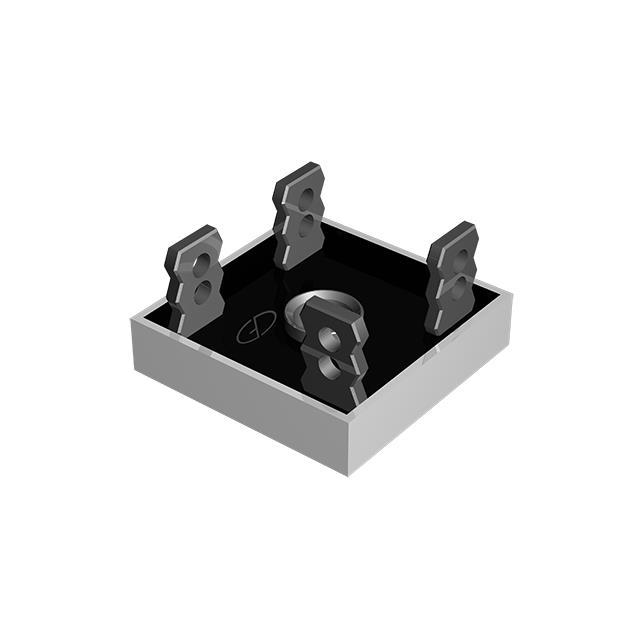

| Part Number | KBPC1506 | KBPC1506-G | KBPC1506T | KBPC1506W |
| Manufacturer | Good-Ark Semiconductor | Comchip Technology | GeneSiC Semiconductor | GeneSiC Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant | RoHS Compliant |
| Description | BRIDGE RECTIFIER, GENERAL PURPOS | BRIDGE RECT 1PHASE 600V 15A KBPC | BRIDGE RECT 1PHASE 600V 15A KBPC | BRIDGE RECT 1P 600V 15A KBPC-W |
| Series | KBPC15 | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk |
