KBPC3508W
lmages are for reference only.KBPC3508W
BRIDGE RECT 1P 800V 35A KBPC-W
Datasheet4-Square, KBPC-W
93,085 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Bridge Rectifier Single Phase Standard 800 V Through Hole KBPC-W
KBPC3508W
| Category | Discrete Semiconductor Products - Diodes - Bridge Rectifiers |
| Manufacturer | GeneSiC Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Diode Type | Single Phase |
| Technology | Standard |
| Voltage - Peak Reverse (Max) | 800 V |
| Current - Average Rectified (Io) | 35 A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 17.5 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 800 V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 4-Square, KBPC-W |
| Supplier Device Package | KBPC-W |
| Base Product Number | KBPC3508 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|

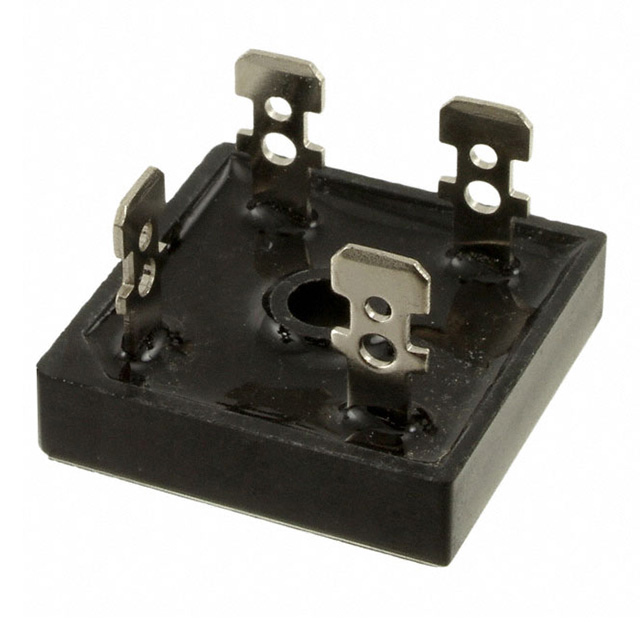

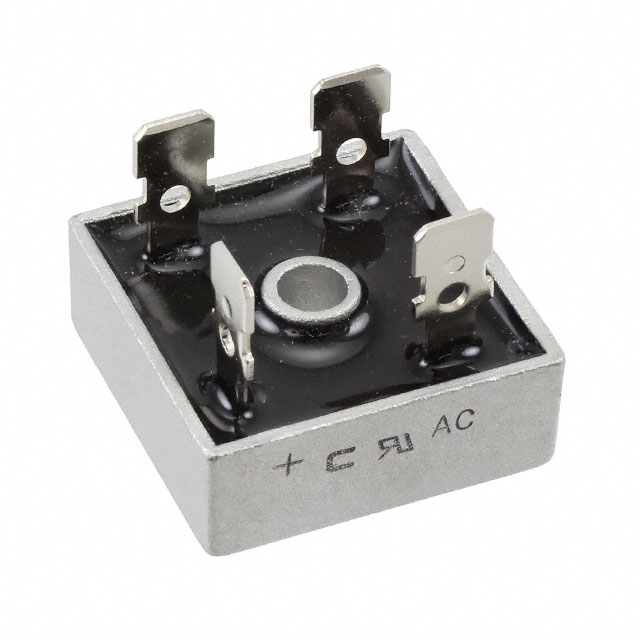

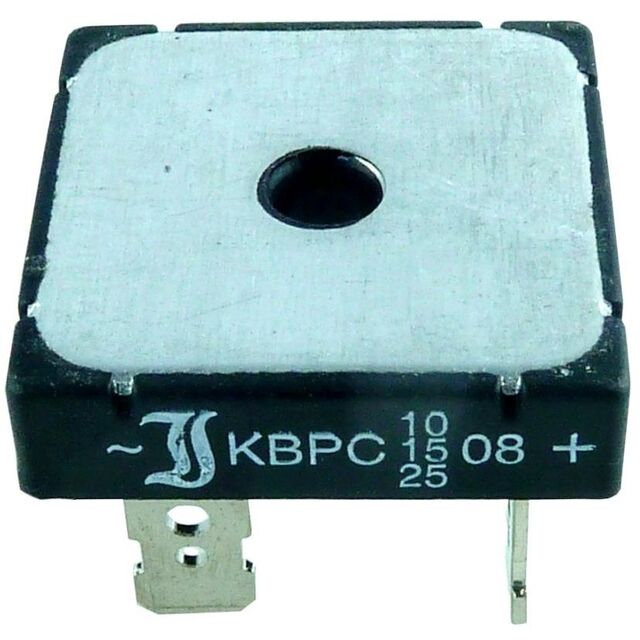

| Part Number | KBPC3508-G | KBPC3508FP | KBPC3508T | KBPC3508W |
| Manufacturer | Comchip Technology | Diotec Semiconductor | GeneSiC Semiconductor | Good-Ark Semiconductor |
| RoHS Status | ROHS3 Compliant | Not applicable | RoHS Compliant | ROHS3 Compliant |
| Description | BRIDGE RECT 1PHASE 800V 35A KBPC | BRIDGE 1-PH KBPC 800V 35A 150C | BRIDGE RECT 1PHASE 800V 35A KBPC | BRIDGE RECTIFIER, GENERAL PURPOS |
| Series | - | - | - | KBPC35 |
| Packaging | Tray | Box | Bulk | Box |
