KBPC802

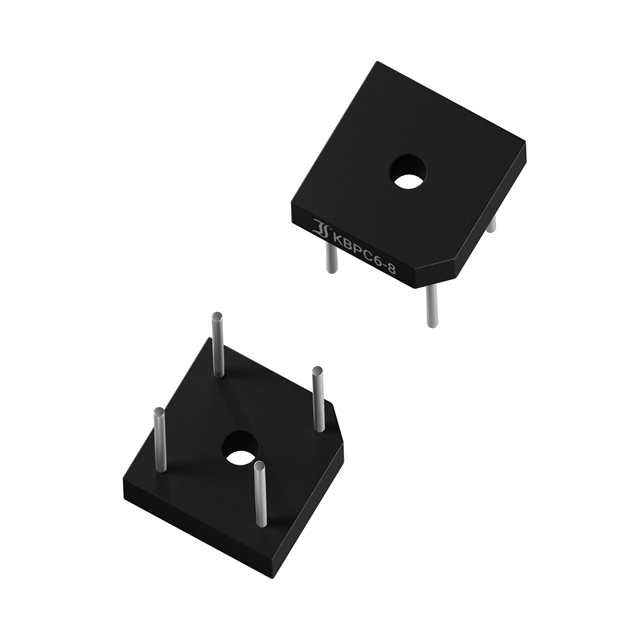

lmages are for reference only.KBPC802
BRIDGE RECTIFIER, GENERAL PURPOS
Datasheet4-Square, KBPC-8
30,312 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Bridge Rectifier Single Phase Standard 200 V Through Hole KBPC8
KBPC802
| Category | Discrete Semiconductor Products - Diodes - Bridge Rectifiers |
| Manufacturer | Good-Ark Semiconductor |
| Series | KBPC8xx |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Diode Type | Single Phase |
| Technology | Standard |
| Voltage - Peak Reverse (Max) | 200 V |
| Current - Average Rectified (Io) | 3 A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 4 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 200 V |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 4-Square, KBPC-8 |
| Supplier Device Package | KBPC8 |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
|
| Part Number | KBPC800 | KBPC801 | KBPC802 | KBPC804 |
| Manufacturer | Diotec Semiconductor | Diotec Semiconductor | Diotec Semiconductor | Diotec Semiconductor |
| RoHS Status | ||||
| Description | BRIDGE 1-PH KBPC8-PB10 50V | BRIDGE 1-PH KBPC8-PB10 100V | BRIDGE 1-PH KBPC8-PB10 200V | BRIDGE 1PH KBPC8-PB10 400V 8A |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk |
