KFC4B22180L

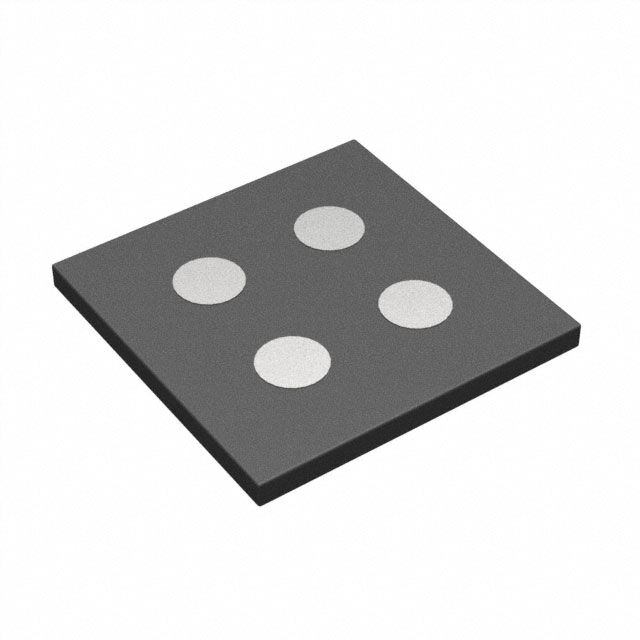

lmages are for reference only.KFC4B22180L
MOSFET 2N-CH 20V 5A 4CSP
Datasheet4-XFLGA, CSP
81,974 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Mosfet Array 20V 5A (Ta) 400mW (Ta) Surface Mount 4-CSP (1.74x1.74)
KFC4B22180L
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Nuvoton Technology Corporation |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel, Common Drain |
| FET Feature | - |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 5A (Ta) |
| Rds On (Max) @ Id, Vgs | 11.9mOhm @ 2.5A, 4.5V |
| Vgs(th) (Max) @ Id | 1.4V @ 640µA |
| Gate Charge (Qg) (Max) @ Vgs | 23nC @ 4V |
| Input Capacitance (Ciss) (Max) @ Vds | 2440pF @ 10V |
| Power - Max | 400mW (Ta) |
| Operating Temperature | 150°C |
| Mounting Type | Surface Mount |
| Package / Case | 4-XFLGA, CSP |
| Supplier Device Package | 4-CSP (1.74x1.74) |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
|
| Part Number | KFC4B22180LE | KFC4B21080L | KFC4B21210L | KFC4B21320L |
| Manufacturer | Nuvoton Technology Corporation | Nuvoton Technology Corporation | Nuvoton Technology Corporation | Nuvoton Technology Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET 2N-CH 20V 5A 4CSP | MOSFET 12V 2.9A 4CSP | MOSFET 12V 4.7A 4CSP | MOSFET 12V 2.5A 4CSP |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
