KFC6B21B70L
lmages are for reference only.KFC6B21B70L
MOSFET 2N-CH 12V 9A 6CSP
Datasheet6-XFLGA, CSP
12,280 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Mosfet Array 12V 9A (Ta) 500mW (Ta) Surface Mount 6-CSP (1.24x1.89)
KFC6B21B70L
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Nuvoton Technology Corporation |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel, Common Drain |
| FET Feature | - |
| Drain to Source Voltage (Vdss) | 12V |
| Current - Continuous Drain (Id) @ 25°C | 9A (Ta) |
| Rds On (Max) @ Id, Vgs | 5.5mOhm @ 4.5A, 4.5V |
| Vgs(th) (Max) @ Id | 1.4V @ 260µA |
| Gate Charge (Qg) (Max) @ Vgs | 15nC @ 4V |
| Input Capacitance (Ciss) (Max) @ Vds | 1810pF @ 10V |
| Power - Max | 500mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-XFLGA, CSP |
| Supplier Device Package | 6-CSP (1.24x1.89) |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
|

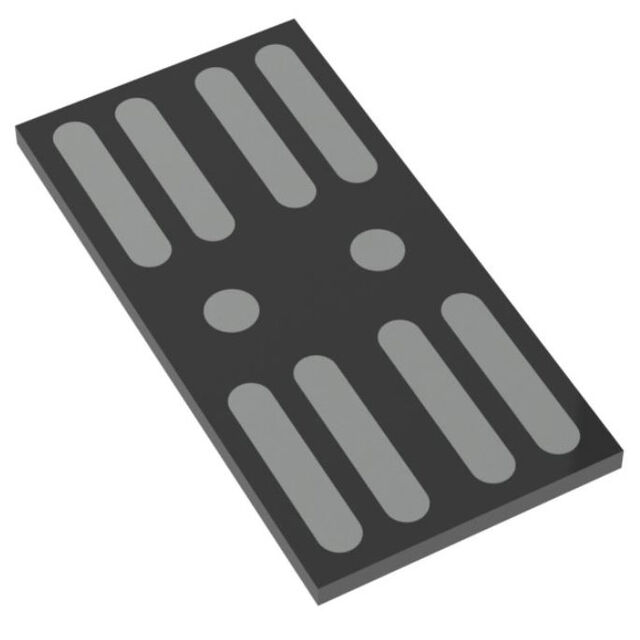

| Part Number | KFC6B21B70LE | KFCAB21520L | KFC4B21320L | KFC4B22690L |
| Manufacturer | Nuvoton Technology Corporation | Nuvoton Technology Corporation | Nuvoton Technology Corporation | Nuvoton Technology Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET 2N-CH 12V 9A 6CSP | MOSFET 2N-CH 12V 16A 10SMD | MOSFET 12V 2.5A 4CSP | MOSFET 20V 3.4A 4CSP |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
