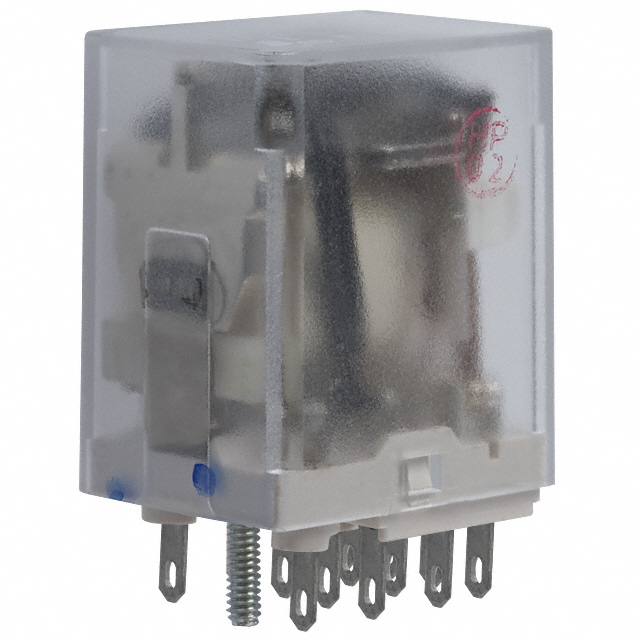

KHU-17D13-24
lmages are for reference only.KHU-17D13-24
RELAY GEN PURPOSE 4PDT 2A 24V
Datasheet-
77,576 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay 4PDT (4 Form C) Socketable
KHU-17D13-24
| Category | Relays - Signal Relays-Up to 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | KHU |
| Packaging | Bulk |
| RoHS Status | |
| Mounting Type | Socketable |
| Coil Voltage | 24VDC |
| Contact Form | 4PDT (4 Form C) |
| Contact Rating (Current) | 2 A |
| Switching Voltage | 240VAC - Max |
| Load - Max Switching | 480VA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Plug In |
| Seal Rating | - |
| Coil Insulation | Class B |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | - |
| Operate Time | 13 ms |
| Release Time | 6 ms |
| Operating Temperature | -45°C ~ 70°C |
| Contact Material | Silver Nickel (AgNi), Gold (Au) |
| Approval Agency | CSA, UR |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Base Product Number | KHU-17 |
| Coil Current | 37.5 mA |
| Coil Resistance | 640 Ohms |
| Product Attribute |  |
 |
|
|
| Part Number | KHU-17D16-24 | KHAE-11D16-24 | KHAE-17A16-120 | KHAE-17D16-24 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RELAY GEN PURPOSE 4PDT 1A 24V | RELAY GEN PURPOSE DPDT 1A 24V | RELAY GEN PURPOSE 4PDT 1A 120V | RELAY GEN PURPOSE 4PDT 1A 24V |
| Series | KHU | KHA | KHA | KHA |
| Packaging | Bulk | Bulk | Bulk | Bulk |
