Product CatalogPart Number
KHV12-0.5K10000N
Manufacturer
Volgen + FurunoDescription
DC DC CONVERTER -500V 5W
Datasheet
DatasheetPackage
7-DIP Module
In Stock
32,071 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
KHV12-0.5K10000N
KHV12-0.5K10000N

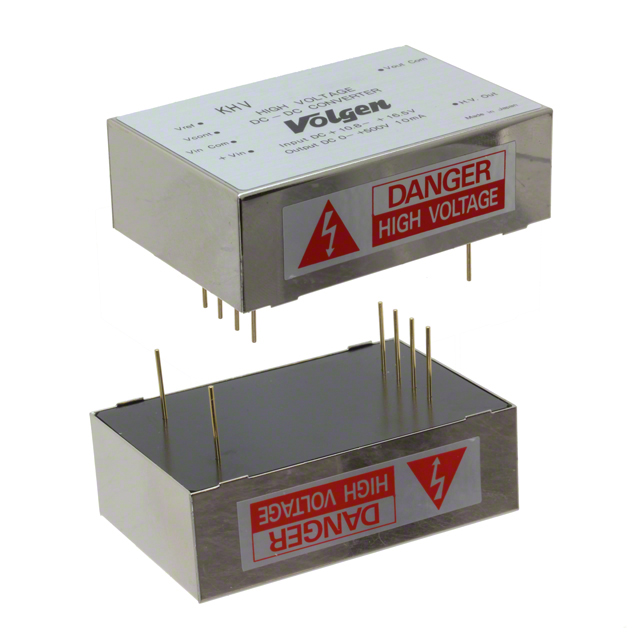

lmages are for reference only.Payment Methods
Delivery Services
High Voltage - Non-Isolated Module DC DC Converter 1 Output -500V 10mA 10.8V - 16.5V Input
Quick Inquiry
KHV12-0.5K10000N
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Volgen + Furuno |
| Series | KHV (5W) |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Type | High Voltage - Non-Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 10.8V |
| Voltage - Input (Max) | 16.5V |
| Voltage - Output 1 | -500V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 10mA |
| Power (Watts) | 5 W |
| Applications | ITE (Commercial) |
| Features | OCP |
| Operating Temperature | -10°C ~ 50°C |
| Efficiency | - |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 7-DIP Module |
| Size / Dimension | 2.36" L x 1.57" W x 0.79" H (60.0mm x 40.0mm x 20.0mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | KHV12 |
| Voltage - Isolation | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | KHV12-0.5K10000P | KHV12-1.0K5000N | KHV12-1.0K5000P | KHV12-2.0K2500N |
| Manufacturer | Volgen + Furuno | Volgen + Furuno | Volgen + Furuno | Volgen + Furuno |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | 5W 10V INP 5V O/P HI VOLT DC/DC | DC DC CONVERTER -1000V 5W | 5W 10V INP 10V O/P HI VOLT DC/DC | DC DC CONVERTER -2000V 5W |
| Series | Volgen + Furuno | Volgen + Furuno | Volgen + Furuno | Volgen + Furuno |
| Packaging | Bulk | Bulk | Bulk | Bulk |
