Product CatalogPart Number
KMG100VB101M10X20LL
Manufacturer
Chemi-ConDescription
CAP ALUM 100UF 20% 100V RADIAL
Datasheet
DatasheetPackage
Radial, Can
In Stock
38,337 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
KMG100VB101M10X20LL
KMG100VB101M10X20LL
lmages are for reference only.Payment Methods
Delivery Services
100 µF 100 V Aluminum Electrolytic Capacitors Radial, Can 1.326Ohm @ 120Hz 1000 Hrs @ 105°C
Quick Inquiry
KMG100VB101M10X20LL
Specifications
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Chemi-Con |
| Series | KMG |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 1.326Ohm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 265 mA @ 120 Hz |
| Ripple Current @ High Frequency | 397.5 mA @ 100 kHz |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.787" (20.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Base Product Number | - |
| Impedance | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
|
|
| Part Number | KMG100VB102M18X40LL | KMG100VB10RM6X11LL | KMG100VB1R0M5X11LL | KMG100VB221M12X25LL |
| Manufacturer | Chemi-Con | Chemi-Con | Chemi-Con | Chemi-Con |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | CAP ALUM 1000UF 20% 100V RADIAL | CAP ALUM 10UF 20% 100V RADIAL TH | CAP ALUM 1UF 20% 100V RADIAL TH | CAP ALUM 220UF 20% 100V RADIAL |
| Series | Chemi-Con | Chemi-Con | Chemi-Con | Chemi-Con |
| Packaging | Bulk | Bulk | Bulk | Bulk |
Customers Also Interested in
Recommended Products

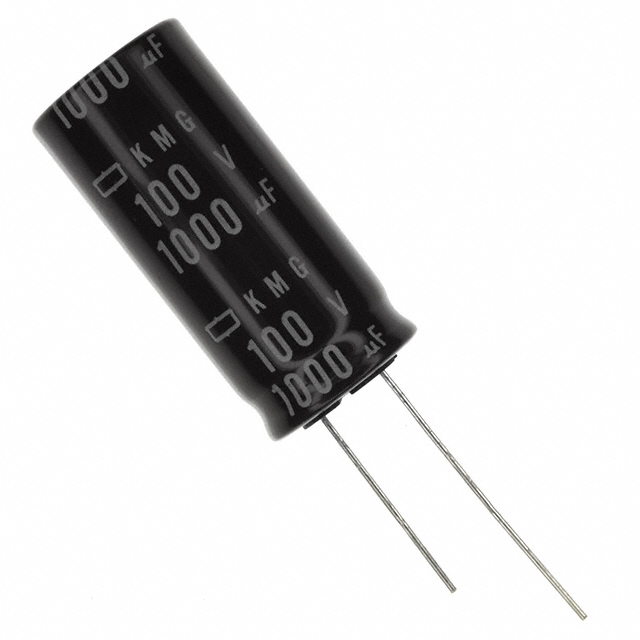

KMG100VB102M18X40LL
Chemi-Con

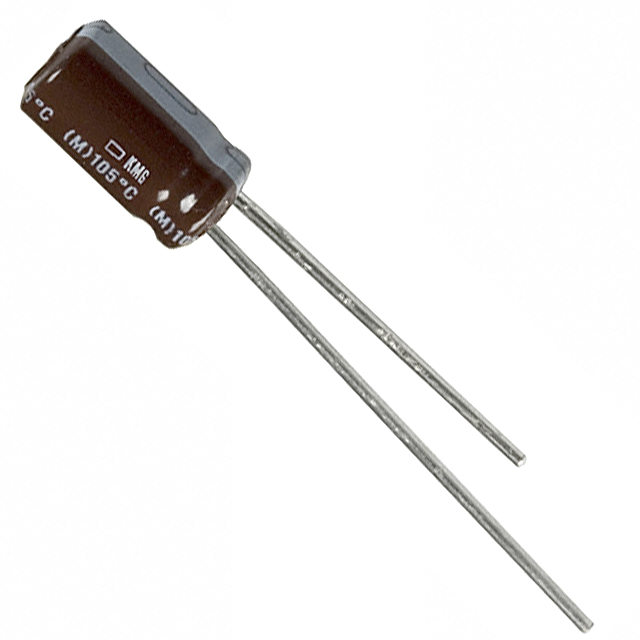

KMG100VB10RM6X11LL
Chemi-Con
KMG100VB1R0M5X11LL
Chemi-Con
KMG100VB221M12X25LL
Chemi-Con
KMG100VB22RM8X11LL
Chemi-Con
KMG100VB2R2M5X11LL
Chemi-Con
KMG100VB331M16X25LL
Chemi-Con

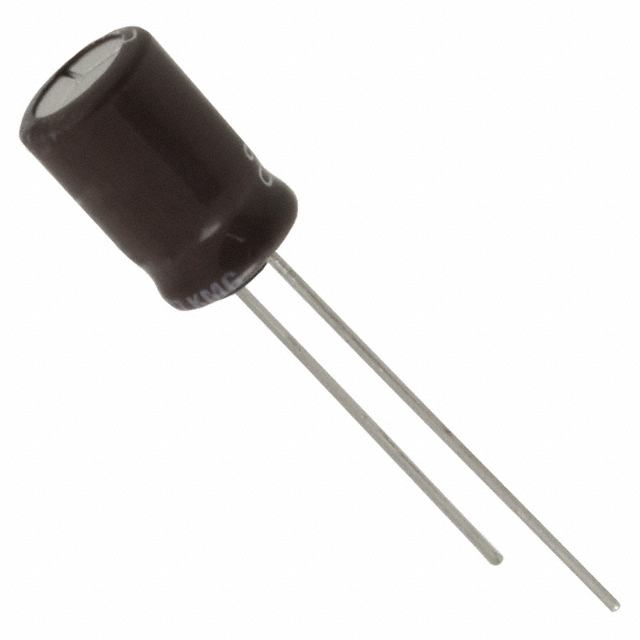

KMG100VB33RM8X11LL
Chemi-Con
KMG100VB3R3M5X11LL
Chemi-Con
KMG100VB471M16X31LL
Chemi-Con

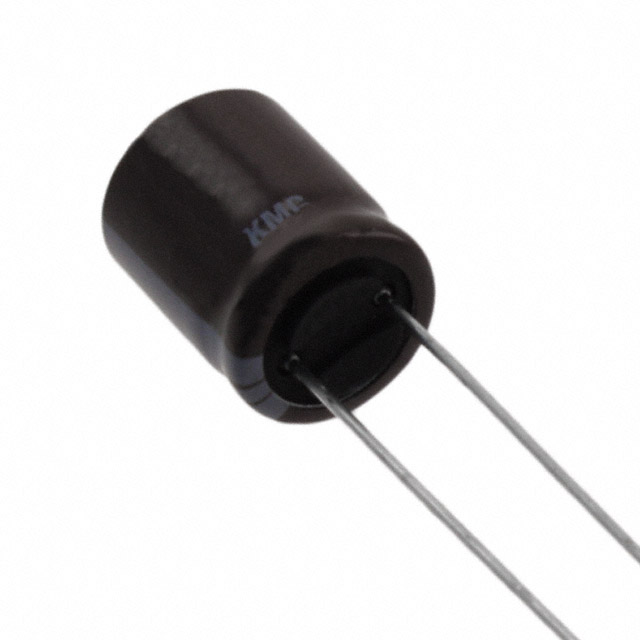

KMG100VB47RM10X12LL
Chemi-Con
KMG100VB4R7M5X11LL
Chemi-Con
KMG10VB101M5X11LL
Chemi-Con
KMG10VB102M10X12LL
Chemi-Con
KMG10VB153M18X35LL
Chemi-Con
KMG10VB221M6X11LL
Chemi-Con

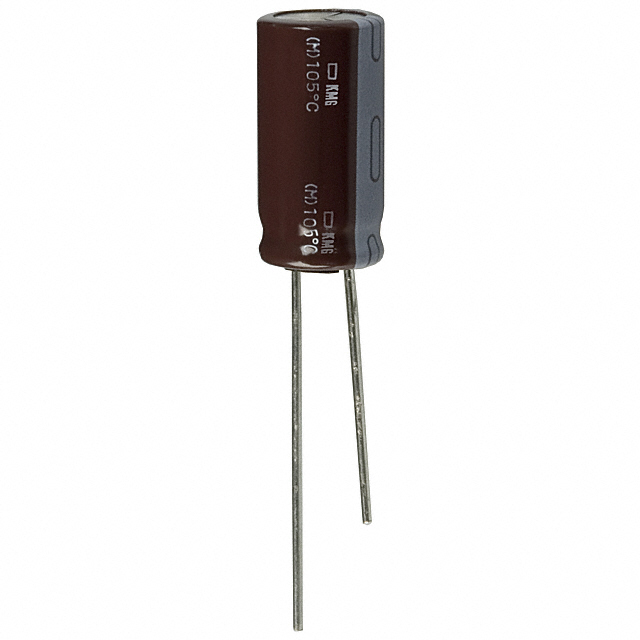

KMG10VB222M10X20LL
Chemi-Con

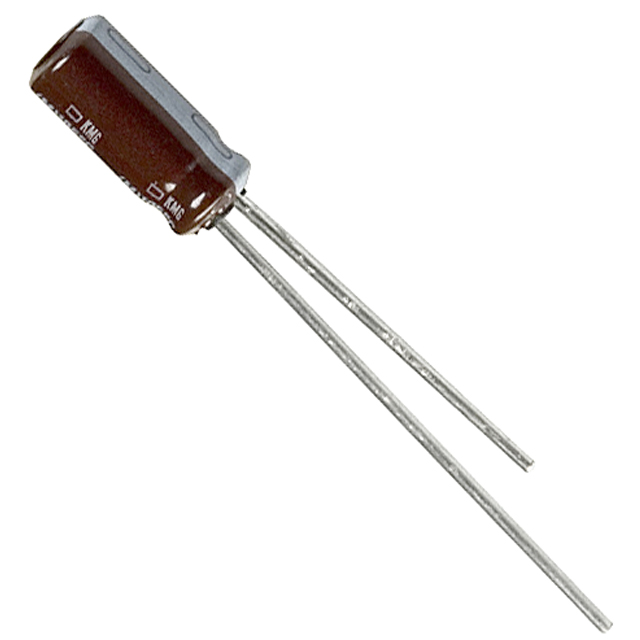

KMG10VB22RM5X11LL
