KRL3216T4A-M-R022-F-T1
lmages are for reference only.Payment Methods
Delivery Services
22 mOhms ±1% 1W Chip Resistor Wide 1206 (3216 Metric), 0612 Current Sense Metal Foil
KRL3216T4A-M-R022-F-T1
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | Susumu |
| Series | KRL |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Resistance | 22 mOhms |
| Tolerance | ±1% |
| Power (Watts) | 1W |
| Composition | Metal Foil |
| Features | Current Sense |
| Temperature Coefficient | ±35ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | Wide 1206 (3216 Metric), 0612 |
| Supplier Device Package | - |
| Ratings | - |
| Size / Dimension | 0.063" L x 0.126" W (1.60mm x 3.20mm) |
| Height - Seated (Max) | 0.028" (0.70mm) |
| Number of Terminations | 4 |
| Failure Rate | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

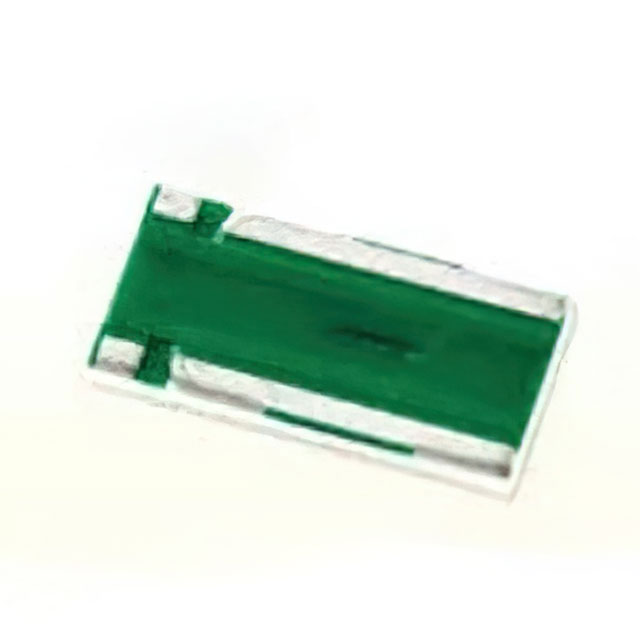

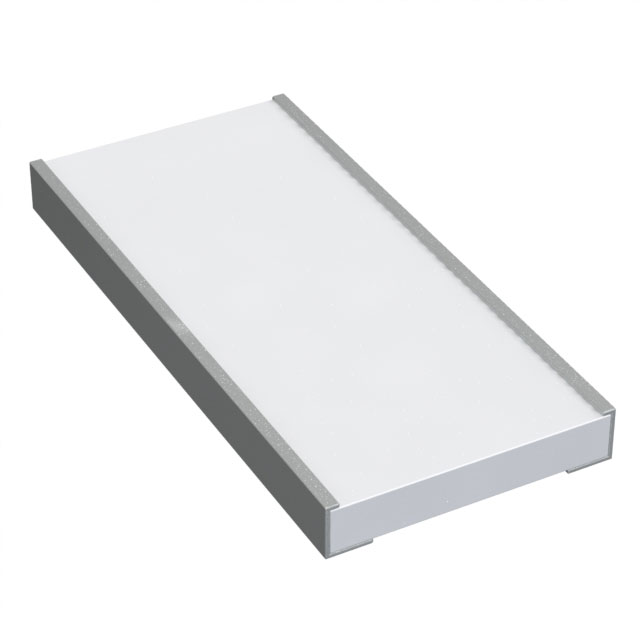

| Part Number | KRL3216T4A-M-R022-F-T5 | KRL3216T4A-M-R001-G-T1 | KRL3216T4A-M-R001-G-T5 | KRL3216T4A-M-R002-G-T1 |
| Manufacturer | Susumu | Susumu | Susumu | Susumu |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RES 0.022 OHM 1W 1206 WIDE | RES 0.001 OHM 1W 1206 WIDE | RES 0.001 OHM 1W 1206 WIDE | RES 0.002 OHM 1W 1206 WIDE |
| Series | Susumu | Susumu | ||
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
