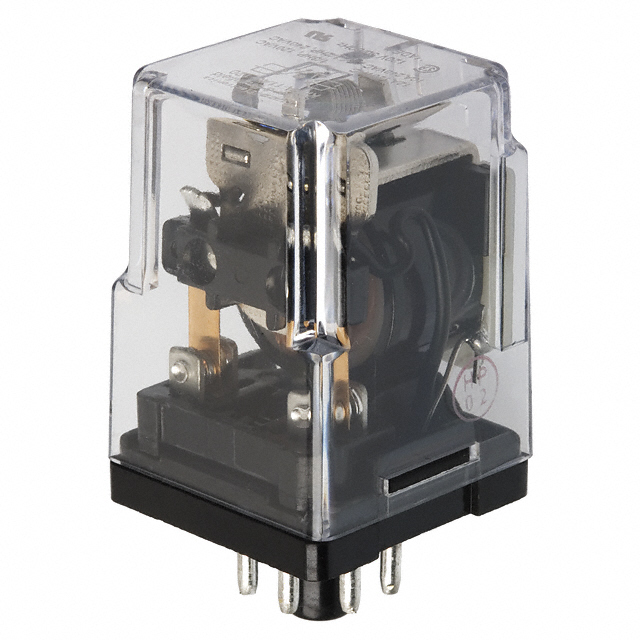

KRPA-11AG-6
lmages are for reference only.KRPA-11AG-6
RELAY GEN PURPOSE DPDT 10A 6V
Datasheet-
71,599 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay DPDT (2 Form C) 6VAC Coil Socketable
KRPA-11AG-6
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | KRPA |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Socketable |
| Coil Voltage | 6VAC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 240VAC - Max |
| Load - Max Switching | 2400VA |
| Coil Current | 335 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Plug In, 8 Pin (Octal) |
| Seal Rating | - |
| Coil Insulation | Class B |
| Must Operate Voltage | 5.1 VAC |
| Must Release Voltage | - |
| Operate Time | - |
| Release Time | - |
| Operating Temperature | -45°C ~ 55°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Approval Agency | CSA, UR |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 6 Ohms |
| Base Product Number | KRPA-11 |
| Product Attribute |  |
 |
 |
 |
| Part Number | KRPA-11AG-12 | KRPA-11AG-24 | KRPA-11AN-12 | KRPA-11AN-24 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RELAY GEN PURPOSE DPDT 10A 12V | RELAY GEN PURPOSE DPDT 10A 24V | RELAY GEN PURPOSE DPDT 10A 12V | RELAY GEN PURPOSE DPDT 10A 24V |
| Series | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| Packaging | Tray | Tray | Tray | Tray |
