Product CatalogPart Number
KSC2690YSTU
Manufacturer
onsemiDescription
TRANS NPN 120V 1.2A TO-126-3
Datasheet
DatasheetPackage
TO-225AA, TO-126-3
In Stock
72,038 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation

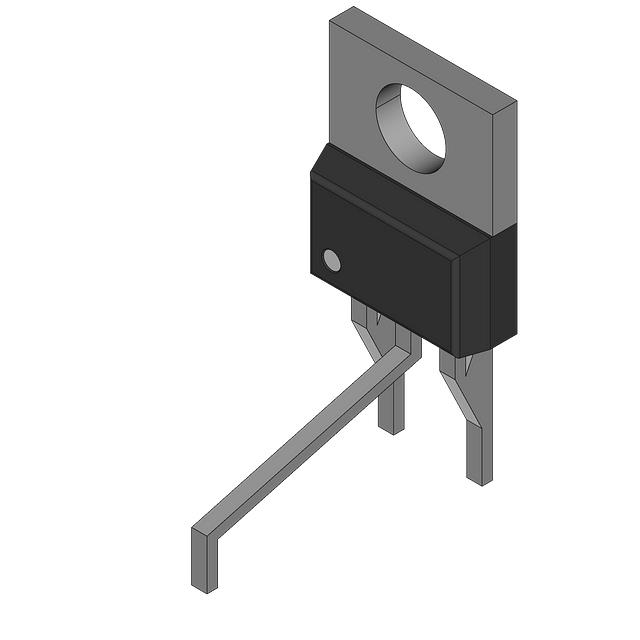

KSC2690YSTU
KSC2690YSTU
lmages are for reference only.Payment Methods
Delivery Services
Bipolar (BJT) Transistor NPN 120 V 1.2 A 155MHz 1.2 W Through Hole TO-126-3
Quick Inquiry
KSC2690YSTU
Specifications
| Category | Discrete Semiconductor Products - Transistors - Bipolar BJT |
| Manufacturer | onsemi |
| Series | - |
| Packaging | Tube |
| RoHS Status | |
| Transistor Type | NPN |
| Current - Collector (Ic) (Max) | 1.2 A |
| Voltage - Collector Emitter Breakdown (Max) | 120 V |
| Vce Saturation (Max) @ Ib, Ic | 700mV @ 200mA, 1A |
| Current - Collector Cutoff (Max) | 1µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 160 @ 300mA, 5V |
| Power - Max | 1.2 W |
| Frequency - Transition | 155MHz |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-225AA, TO-126-3 |
| Supplier Device Package | TO-126-3 |
| Base Product Number | KSC2690 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute | |
 |
|
|
| Part Number | KSC2690YSTU | KSC2669OBU | KSC2682OS | KSC2682OSTU |
| Manufacturer | Fairchild Semiconductor | Fairchild Semiconductor | onsemi | onsemi |
| RoHS Status | ROHS3 Compliant | |||
| Description | TRANS NPN 120V 1.2A TO-126-3 | TRANS NPN 30V 0.03A TO-92S | TRANS NPN 180V 0.1A TO-126-3 | TRANS NPN 180V 0.1A TO-126-3 |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Tube |
Customers Also Interested in
Recommended Products
KSC2669OBU
Fairchild Semiconductor
KSC2682OS
onsemi
KSC2682OSTU
onsemi
KSC2682YS
onsemi

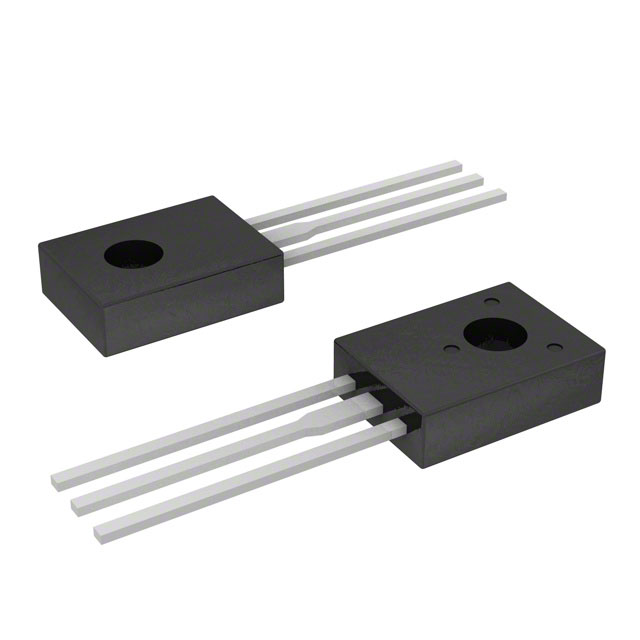

KSC2682YSTU
onsemi

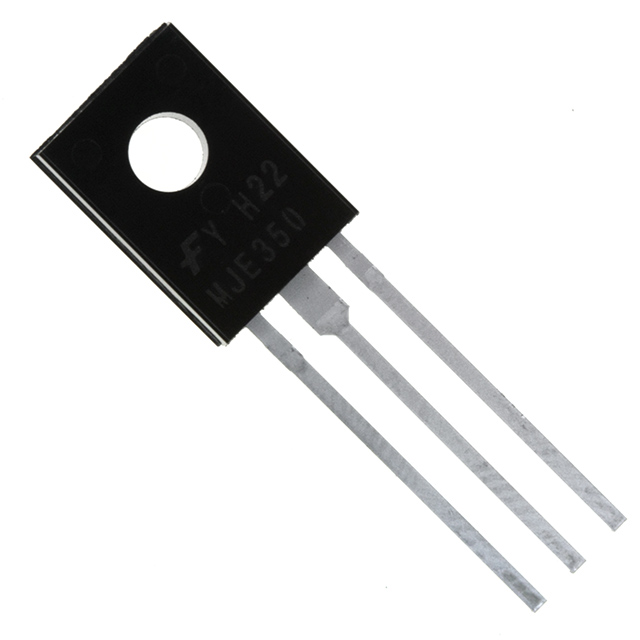

KSC2688OS
