Product CatalogPart Number
KST223JLFG
Manufacturer
C&KDescription
SWITCH TACTILE SPST-NO 0.01A 32V
Datasheet
DatasheetPackage
-
In Stock
22,787 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
KST223JLFG
KST223JLFG

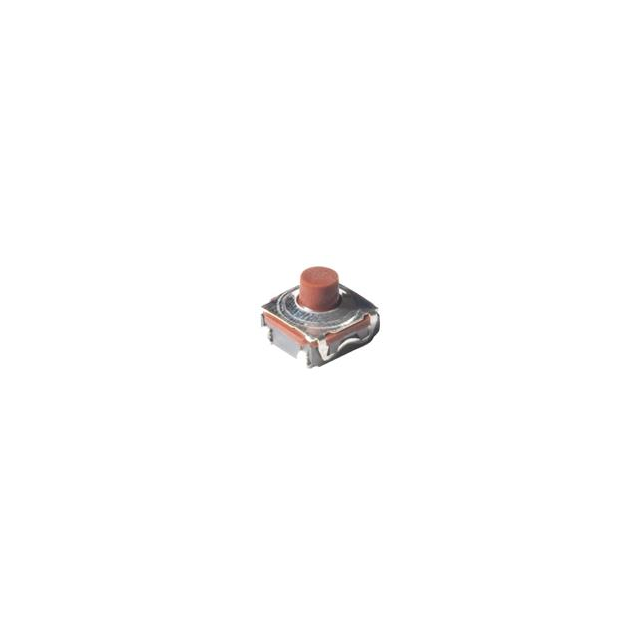

lmages are for reference only.Payment Methods
Delivery Services
Tactile Switch SPST-NO Top Actuated Surface Mount
Quick Inquiry
KST223JLFG
Specifications
| Category | Switches - Tactile Switches - |
| Manufacturer | C&K |
| Series | KST |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Contact Rating @ Voltage | 0.01A @ 32VDC |
| Actuator Type | Standard |
| Mounting Type | Surface Mount |
| Actuator Height off PCB, Vertical | 5.00mm |
| Actuator Length, Right Angle | - |
| Actuator Orientation | Top Actuated |
| Termination Style | J Lead |
| Outline | 6.20mm x 6.20mm |
| Illumination | Non-Illuminated |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
| Operating Force | 200gf |
| Ingress Protection | IP40 |
| Features | - |
| Operating Temperature | -40°C ~ 125°C |
| Actuator Material | Rubber |
| Switch Travel | 1.30mm |
| Mechanical Life | 100,000 Cycles |
| Base Product Number | KST22 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

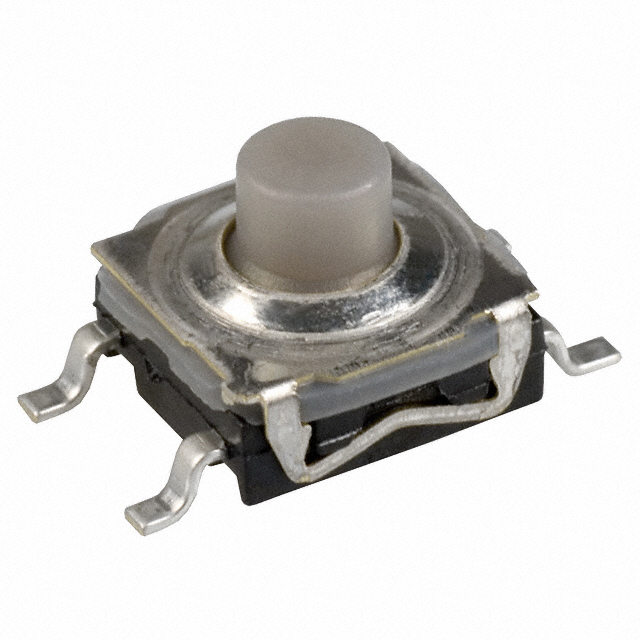

| Part Number | KST221G | KST221GLFS | KST221J | KST221JLFS |
| Manufacturer | C&K | C&K | C&K | C&K |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant |
| Description | SWITCH TACTILE SPST-NO 0.05A 32V | SWITCH TACTILE SPST-NO 0.05A 32V | SWITCH TACTILE SPST-NO 0.05A 32V | SWITCH TACTILE SPST-NO 0.05A 32V |
| Series | KST | KST | KST | KST |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT)--> |
