KUMP-11D19-12

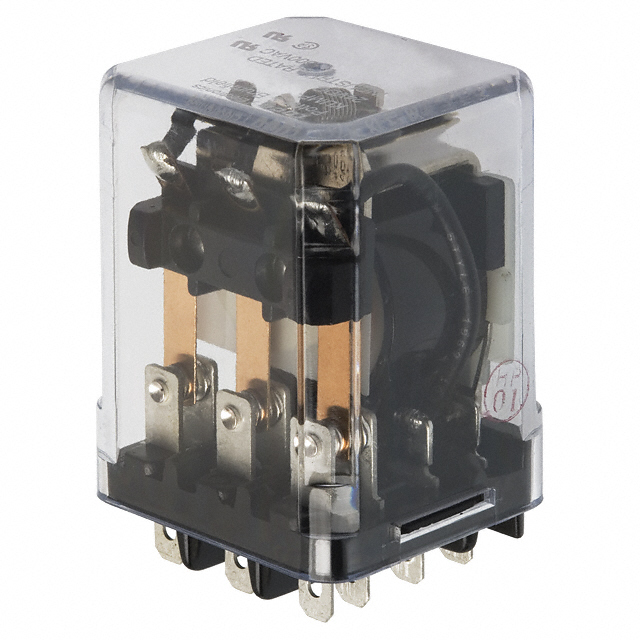

lmages are for reference only.KUMP-11D19-12
RELAY GEN PURPOSE DPDT 15A 12V
Datasheet-
40,307 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay DPDT (2 Form C) 12VDC Coil Through Hole
KUMP-11D19-12
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | KUMP |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 15 A |
| Switching Voltage | 277VAC - Max |
| Load - Max Switching | 4155VA |
| Coil Current | 100 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | - |
| Coil Insulation | Class B |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | - |
| Operate Time | 15 ms |
| Release Time | 10 ms |
| Operating Temperature | -45°C ~ 70°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Approval Agency | CSA, UR |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 120 Ohms |
| Base Product Number | KUMP-11 |
| Product Attribute |  |
 |
 |
 |
| Part Number | KUMP-11A18-24 | KUMP-11A18-240 | KUMP-11AT8-120 | KUMP-11D18-12 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | RELAY GEN PURPOSE DPDT 15A 24V | RELAY GEN PURPOSE DPDT 15A 240V | RELAY GEN PURPOSE DPDT 15A 120V | RELAY GEN PURPOSE DPDT 15A 12V |
| Series | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| Packaging | Bulk | Tray | Tray | Bulk |
