KUP-11A55F-120
lmages are for reference only.KUP-11A55F-120
RELAY GEN PURPOSE DPDT 10A 120V
Datasheet-
49,367 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay DPDT (2 Form C) 120VAC Coil Chassis Mount
KUP-11A55F-120
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | KUP |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Chassis Mount |
| Coil Voltage | 120VAC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 240VAC - Max |
| Load - Max Switching | 2400VA |
| Coil Current | 13.2 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Plug In, Quick Connect - 0.187" (4.7mm) |
| Seal Rating | - |
| Coil Insulation | Class B |
| Must Operate Voltage | 204 VAC |
| Must Release Voltage | - |
| Operate Time | 15 ms |
| Release Time | 10 ms |
| Operating Temperature | -45°C ~ 55°C |
| Contact Material | Silver Cadmium Oxide (AgCdO), Gold (Au) |
| Approval Agency | CSA, UR |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 9.11 kOhms |
| Base Product Number | KUP-11 |
| Product Attribute |  |
 |
|
 |

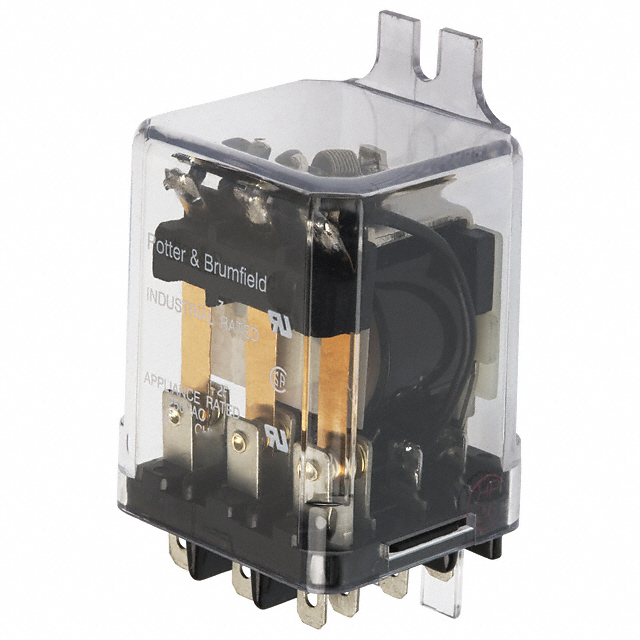

| Part Number | KUP-11A55-24 | KUP-11A55-6 | KUP-11A5K-24 | KUP-11A11-120 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | RELAY GEN PURPOSE DPDT 10A 24V | RELAY GEN PURPOSE DPDT 10A 6V | RELAY GEN PURPOSE DPDT 10A 24V | RELAY GEN PURPOSE DPDT 5A 120V |
| Series | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| Packaging | Bulk | Bulk | Bulk | Tray |
