Product CatalogPart Number
KUSBX-AS2N-B30
Manufacturer
Kycon, Inc.Description
CONN RCPT STACKED USB TYPE A R/A
Datasheet
DatasheetPackage
-
In Stock
57,124 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
KUSBX-AS2N-B30
KUSBX-AS2N-B30
lmages are for reference only.Payment Methods
Delivery Services
USB-A (USB TYPE-A), Stacked Receptacle Connector 8 Position Through Hole, Right Angle
Quick Inquiry
KUSBX-AS2N-B30
Specifications
| Category | Connectors, Interconnects - USB-DVI-HDMI Connectors - USB-DVI-HDMI Connector Assemblies |
| Manufacturer | Kycon, Inc. |
| Series | KUSBX |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Connector Type | USB-A (USB TYPE-A), Stacked |
| Number of Contacts | 8 |
| Gender | Receptacle |
| Specifications | - |
| Mounting Type | Through Hole, Right Angle |
| Mounting Feature | Horizontal |
| Termination | Solder |
| Features | Board Lock |
| Ingress Protection | - |
| Operating Temperature | -40°C ~ 85°C |
| Number of Ports | 2 |
| Current Rating (Amps) | 1A |
| Voltage - Rated | 30VAC |
| Mating Cycles | 1500 |
| Shielding | Shielded |
| Contact Finish | Gold |
| Shell/Shielding Material | Brass |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Base Product Number | KUSBX |
Parts with Similar Specifications
| Product Attribute |  |  |  |  |

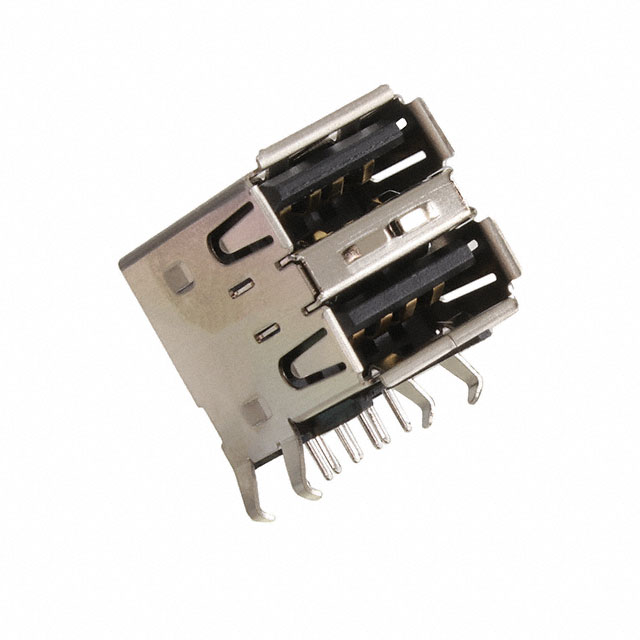

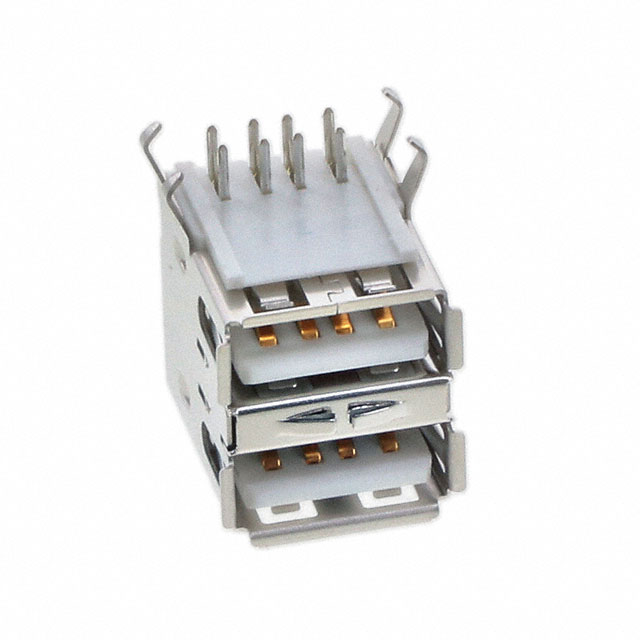

| Part Number | KUSBX-AS2N-B | KUSBX-AS2N-W30 | KUSBX-AS1N-B | KUSBX-AS1N-B30 |
| Manufacturer | Kycon, Inc. | Kycon, Inc. | Kycon, Inc. | Kycon, Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CONN RCPT STACKED USB TYPE A R/A | USB STACKED A-TYPE RECEP WHT INS | CONN RCPT USB TYPE A R/A | CONN RCPT USB TYPE A R/A |
| Series | KUSBX | KUSBX | KUSBX | KUSBX |
| Packaging | Tray | Tray | Tray | Tray |
Customers Also Interested in
Recommended Products

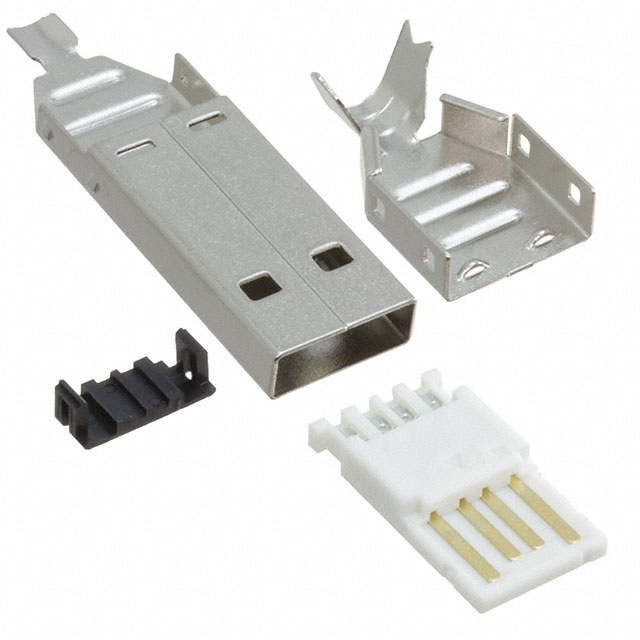

KUSBX-AP-KIT-SC
Kycon, Inc.
KUSBX-AP-KIT-SC-30
Kycon, Inc.
KUSBX-AP-KIT-SCBLK
Kycon, Inc.

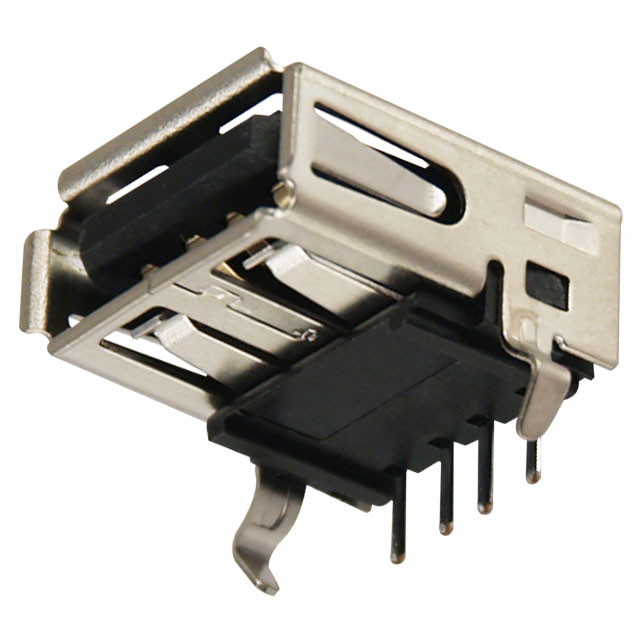

KUSBX-AS1N-B
Kycon, Inc.
KUSBX-AS1N-B30
Kycon, Inc.

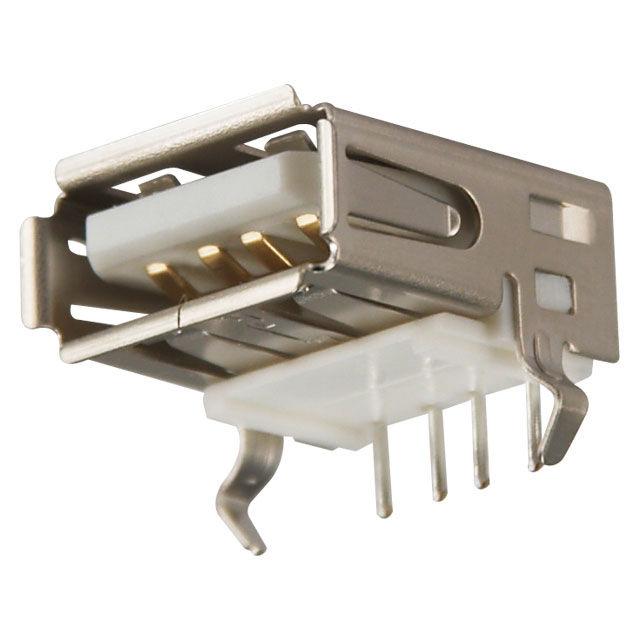

KUSBX-AS1N-W
Kycon, Inc.

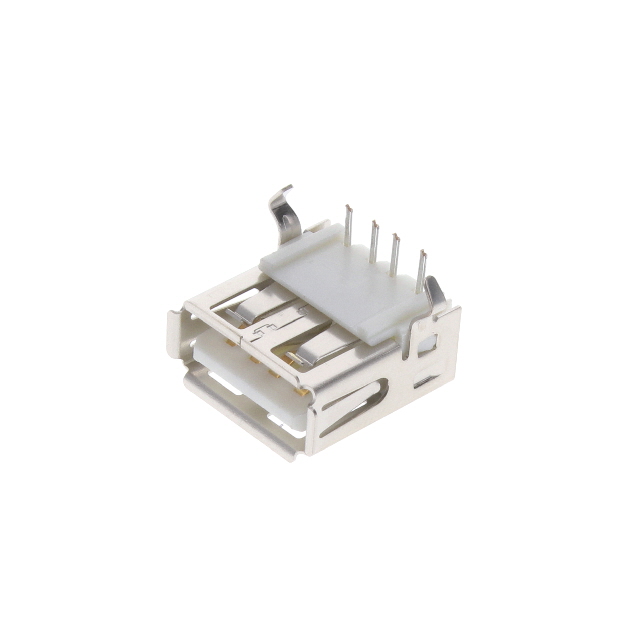

KUSBX-AS1N-W30
Kycon, Inc.
KUSBX-AS1N9-1-BL30
Kycon, Inc.
KUSBX-AS1N9-2-BL30
Kycon, Inc.
KUSBX-AS2N-B
Kycon, Inc.
KUSBX-AS2N-W30
Kycon, Inc.

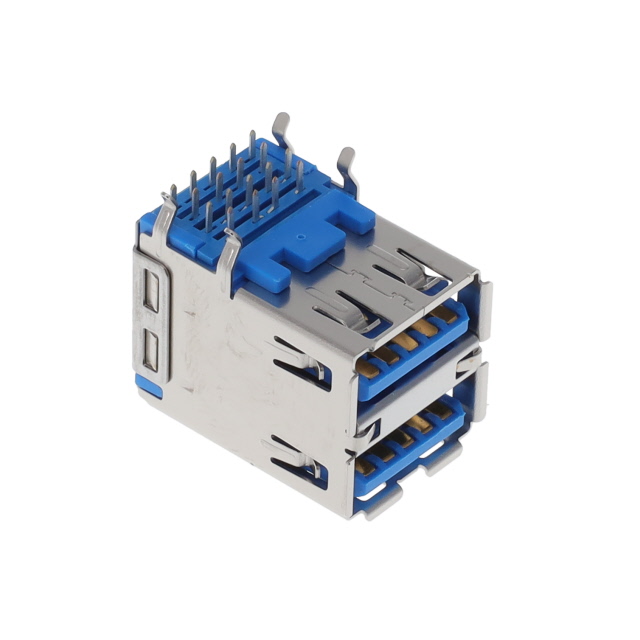

KUSBX-AS2N9-1-BL30
Kycon, Inc.

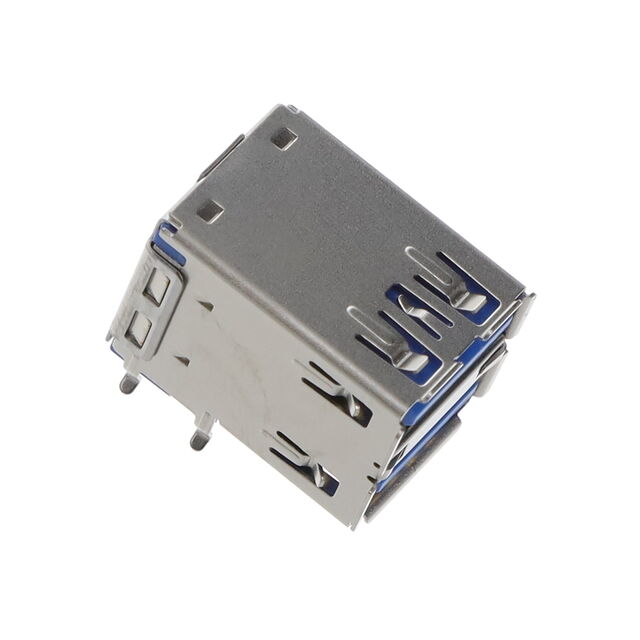

KUSBX-AS2N9-2-BL30
Kycon, Inc.

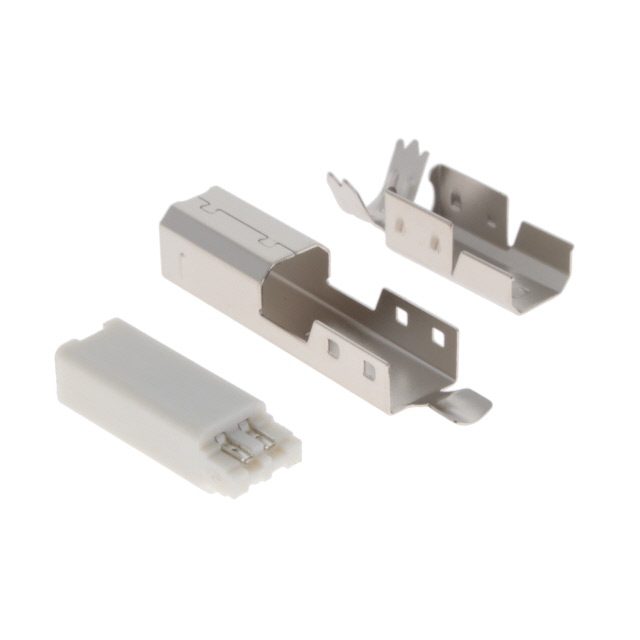

KUSBX-BP-KIT-SC
Kycon, Inc.

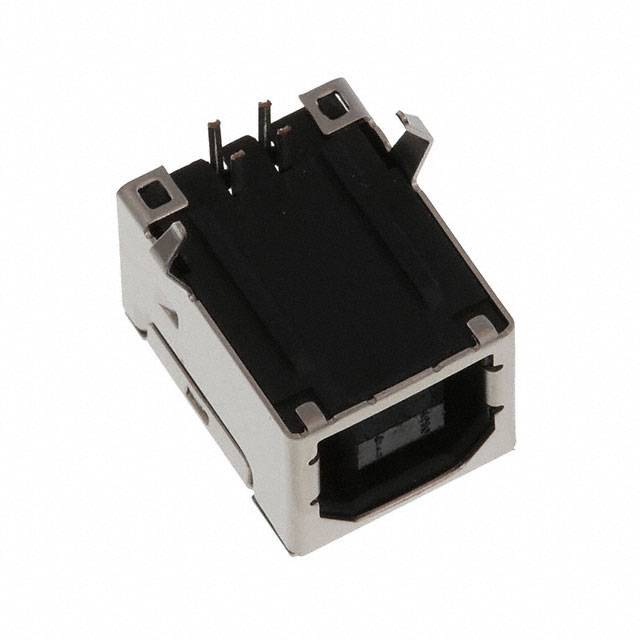

KUSBX-BS1N-B
Kycon, Inc.

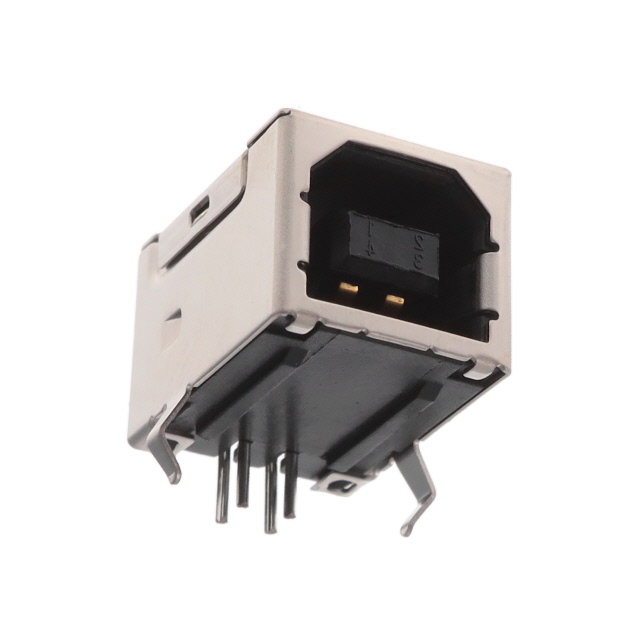

KUSBX-BS1N-B30
