KW1-562ABB
lmages are for reference only.KW1-562ABB
0.56'' 1-DIGIT 7SEG BLU TH DISP
Datasheet10-DIP (0.600", 15.24mm)
55,030 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Display Modules - LED Character and Numeric Blue 7-Segment 1 Character Common Anode 3.2V 20mA 0.748" H x 0.496" W x 0.315" D (19.00mm x 12.60mm x 8.00mm) 10-DIP (0.600", 15.24mm)
KW1-562ABB
| Category | Optoelectronics - LED Character and Numeric - |
| Manufacturer | Luckylight |
| Series | - |
| Packaging | Retail Package |
| RoHS Status | RoHS Compliant |
| Number of Characters | 1 |
| Size / Dimension | 0.748" H x 0.496" W x 0.315" D (19.00mm x 12.60mm x 8.00mm) |
| Digit/Alpha Size | 0.56" (14.20mm) |
| Display Type | 7-Segment |
| Common Pin | Common Anode |
| Color | Blue |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Current - Test | 20mA |
| Millicandela Rating | 15mcd |
| Wavelength - Peak | 468nm |
| Power Dissipation (Max) | 100mW |
| Package / Case | 10-DIP (0.600", 15.24mm) |
| Base Product Number | - |
| Display Format | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | KW1-562AAB | KW1-562AGB | KW1-562AVB | KW1-562AWB |
| Manufacturer | Luckylight | Luckylight | Luckylight | Luckylight |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |

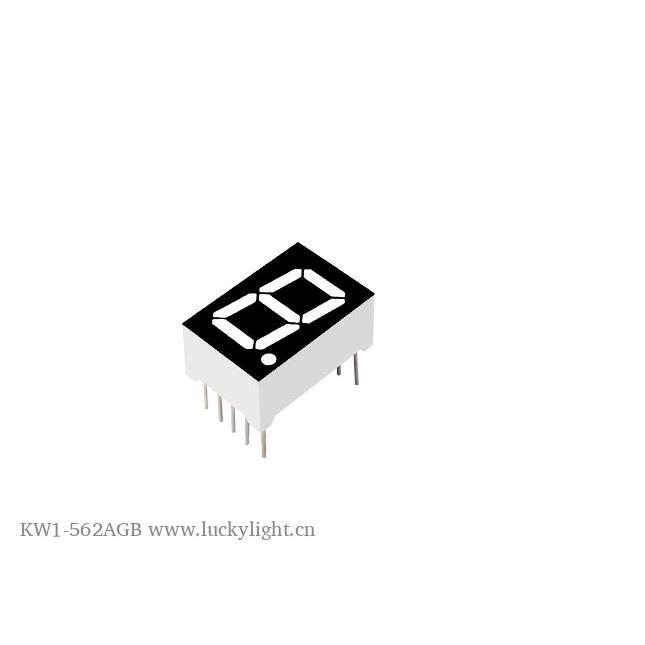

| Description | 0.56'' 1-DIGIT 7SEG ORG TH DISP | 0.56'' 1-DIGIT 7SEG YG TH DISP | 0.56'' 1-DIGIT 7SEG RED-ORG TH D | 0.56'' 1-DIGIT 7SEG WHT TH DISP |
| Series | - | - | - | - |
| Packaging | Retail Package | Retail Package | Retail Package | Retail Package |
