KW1-563CWB
lmages are for reference only.KW1-563CWB
0.56'' 1-DIGIT 7SEG WHT TH DISP
Datasheet10-DIP (0.594", 15.10mm)
107,386 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Display Modules - LED Character and Numeric White 7-Segment 1 Character Common Cathode 3.2V 20mA 0.673" H x 0.488" W x 0.315" D (17.10mm x 12.40mm x 8.00mm) 10-DIP (0.594", 15.10mm)
KW1-563CWB
| Category | Optoelectronics - LED Character and Numeric - |
| Manufacturer | Luckylight |
| Series | - |
| Packaging | Retail Package |
| RoHS Status | RoHS Compliant |
| Number of Characters | 1 |
| Size / Dimension | 0.673" H x 0.488" W x 0.315" D (17.10mm x 12.40mm x 8.00mm) |
| Digit/Alpha Size | 0.56" (14.20mm) |
| Display Type | 7-Segment |
| Common Pin | Common Cathode |
| Color | White |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Current - Test | 20mA |
| Millicandela Rating | 30mcd |
| Wavelength - Peak | - |
| Power Dissipation (Max) | 100mW |
| Package / Case | 10-DIP (0.594", 15.10mm) |
| Base Product Number | - |
| Display Format | - |
| Product Attribute |  |
 |
 |
 |

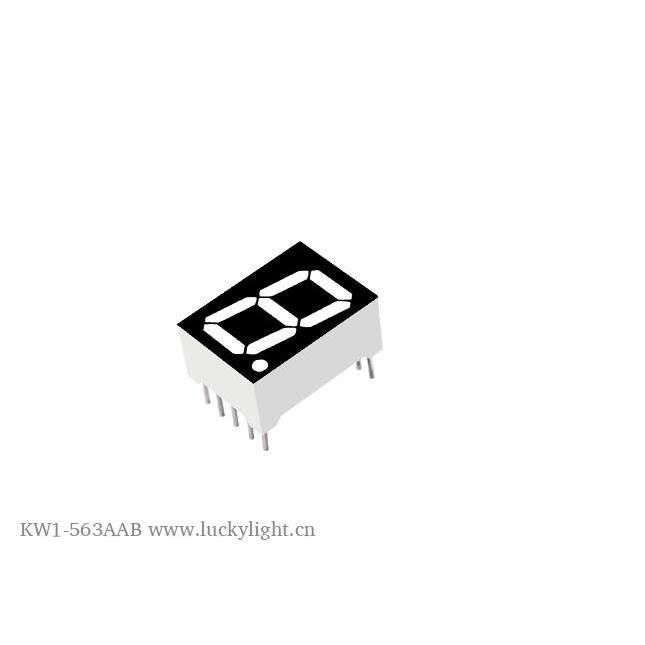

| Part Number | KW1-563AAB | KW1-563ABB | KW1-563AGB | KW1-563AVB |
| Manufacturer | Luckylight | Luckylight | Luckylight | Luckylight |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | 0.56'' 1-DIGIT 7SEG ORG TH DISP | 0.56'' 1-DIGIT 7SEG BLU TH DISP | 0.56'' 1-DIGIT 7SEG GRN TH DISP | 0.56'' 1-DIGIT 7SEG RED-ORG TH D |
| Series | - | - | - | - |
| Packaging | Retail Package | Retail Package | Retail Package | Retail Package |
