L-07W6N2SV4T

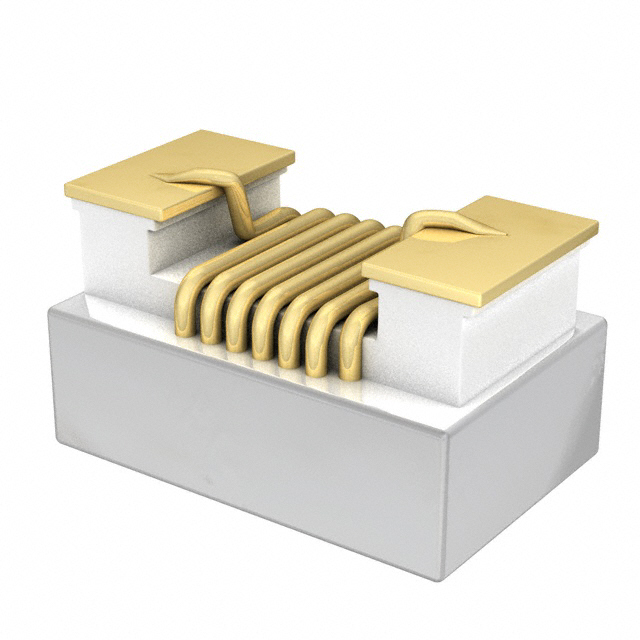

lmages are for reference only.L-07W6N2SV4T
FIXED IND 6.2NH 760MA 83MOHM SMD
Datasheet0402 (1005 Metric)
11,344 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
6.2 nH Unshielded Drum Core, Wirewound Inductor 760 mA 83mOhm Max 0402 (1005 Metric)
L-07W6N2SV4T
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Johanson Technology Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ceramic |
| Inductance | 6.2 nH |
| Tolerance | ±0.3nH |
| Current Rating (Amps) | 760 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 83mOhm Max |
| Q @ Freq | 57 @ 900MHz |
| Frequency - Self Resonant | 5.8GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 250 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 (1005 Metric) |
| Size / Dimension | 0.039" L x 0.022" W (1.00mm x 0.55mm) |
| Height - Seated (Max) | 0.024" (0.60mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
|
|
| Part Number | L-07W6N8SV4T | L-05B11NJV6T | L-05B33NJT6 | L-05B39NKG6 |
| Manufacturer | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant | RoHS non-compliant |
| Description | FIXED IND 6.8NH 680MA 83MOHM SMD | FIXED IND 11NH 250MA SMD | FIXED IND 33NH 200MA SMD | FIXED IND 39NH 200MA SMD |
| Series | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Bulk | Bulk |
