Product CatalogPart Number
L07P020D15
Manufacturer
TamuraDescription
SENSOR CURRENT HALL 20A AC/DC
Datasheet
DatasheetPackage
Module
In Stock
17,840 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
L07P020D15
L07P020D15

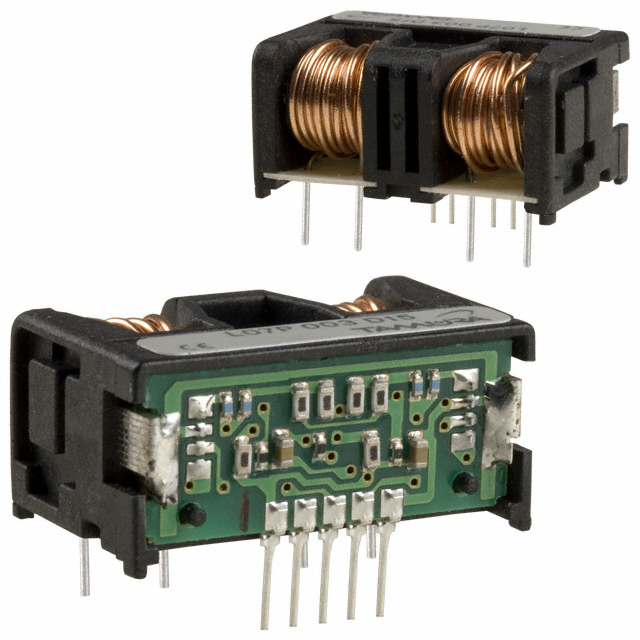

lmages are for reference only.Payment Methods
Delivery Services
Current Sensor 20A 1 Channel Hall Effect, Open Loop Bidirectional Module
Quick Inquiry
L07P020D15
Specifications
| Category | Sensors, Transducers - Current Sensors - |
| Manufacturer | Tamura |
| Series | L07P |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| For Measuring | AC/DC |
| Sensor Type | Hall Effect, Open Loop |
| Current - Sensing | 20A |
| Number of Channels | 1 |
| Output | Ratiometric, Voltage |
| Sensitivity | - |
| Frequency | DC ~ 100kHz |
| Linearity | ±1% |
| Accuracy | - |
| Voltage - Supply | ±15V |
| Response Time | 5µs |
| Current - Supply (Max) | 30mA |
| Operating Temperature | -30°C ~ 80°C |
| Polarization | Bidirectional |
| Mounting Type | Through Hole |
| Package / Case | Module |
| Supplier Device Package | - |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
|
| Part Number | L07P020D15S | L07P020S05 | L07P003D15 | L07P003D15S |
| Manufacturer | Tamura | Tamura | Tamura | Tamura |
| RoHS Status | RoHS Compliant | RoHS Compliant | ||
| Description | SENSOR CURRENT HALL | SENSOR CURRENT HALL 20A AC/DC | SENSOR CURRENT HALL 3A AC/DC | SENSOR CURRENT HALL |
| Series | Tamura | Tamura | Tamura | Tamura |
| Packaging | Bulk | Bulk | Bulk | Bulk |
