Product CatalogPart Number
L1007C100KDWIT
Manufacturer
KEMETDescription
INDUCTOR, WW SMD
Datasheet
DatasheetPackage
1007 (2518 Metric)
In Stock
65,341 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
L1007C100KDWIT
L1007C100KDWIT
lmages are for reference only.Payment Methods
Delivery Services
10 µH Unshielded Drum Core, Wirewound Inductor 680 mA 360mOhm 1007 (2518 Metric)
Quick Inquiry
L1007C100KDWIT
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | KEMET |
| Series | L-DWI |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 10 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 680 mA |
| Current - Saturation (Isat) | 480mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 360mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 30MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 2.52 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1007 (2518 Metric) |
| Supplier Device Package | 1007 |
| Size / Dimension | 0.098" L x 0.071" W (2.50mm x 1.80mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
|
|
|
| Part Number | L1007C100KPWST | L1007C100MDWIT | L1007C100MPWIT | L1007C100MPWST |
| Manufacturer | KEMET | KEMET | KEMET | KEMET |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | INDUCTOR, WW SMD | FIXED IND 10UH 680MA 360MOHM SMD | INDUCTOR, WW SMD | INDUCTOR, WW SMD |
| Series | KEMET | KEMET | KEMET | KEMET |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
Customers Also Interested in
Recommended Products
L1007C100KPWST
KEMET
L1007C100MDWIT
KEMET
L1007C100MPWIT
KEMET
L1007C100MPWST
KEMET
L1007C100MPWST
KEMET
L1007C101KDWIT
KEMET
L1007C101KPWIT
KEMET
L1007C101KPWST
KEMET
L1007C101KPWST
KEMET
L1007C101MDWIT
KEMET
L1007C101MPWIT
KEMET
L1007C102KDWST
KEMET
L1007C102KDWST
KEMET

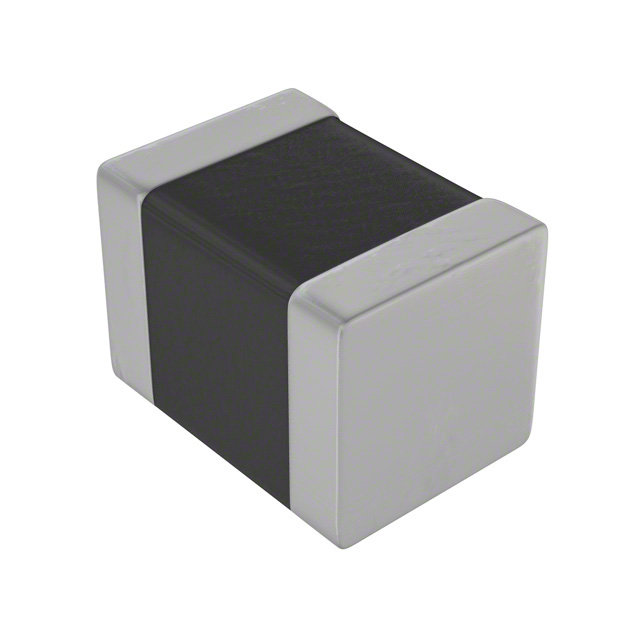

L1007C102KPWST
KEMET

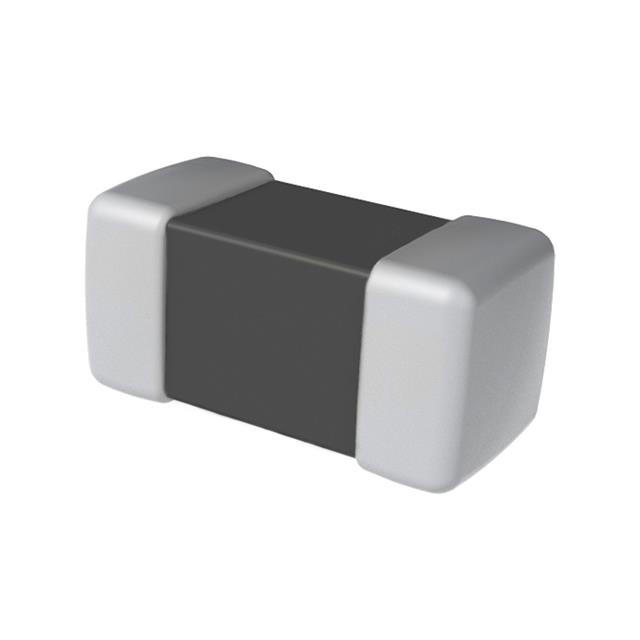

L1007C102MPWST
