Product CatalogPart Number
L1GN402105KA03
Manufacturer
KEMETDescription
CAP CER 1UF 200V C0G/NP0 8 LEAD
Datasheet
DatasheetPackage
Stacked DIP, 8 Lead
In Stock
21,942 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
L1GN402105KA03
L1GN402105KA03

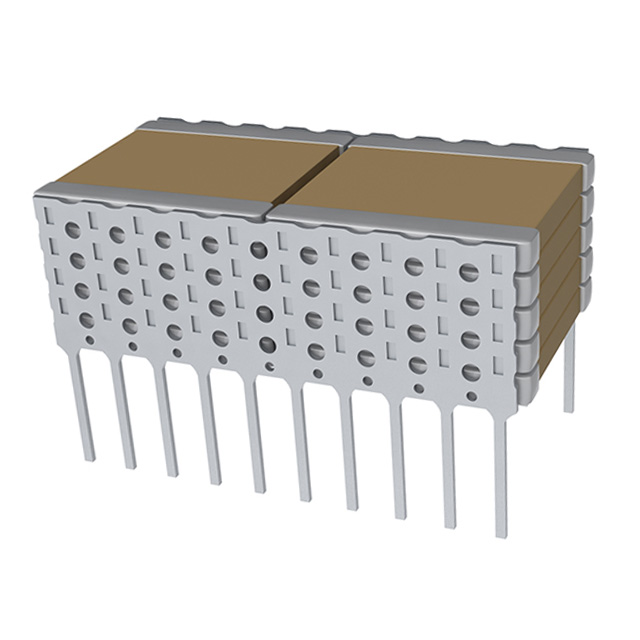

lmages are for reference only.Payment Methods
Delivery Services
1 µF ±10% 200V Ceramic Capacitor C0G, NP0 Stacked DIP, 8 Lead
Quick Inquiry
L1GN402105KA03
Specifications
| Category | Capacitors - Ceramic Capacitors - |
| Manufacturer | KEMET |
| Series | KPS-MCC Indust C0G HT200C |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 1 µF |
| Tolerance | ±10% |
| Voltage - Rated | 200V |
| Temperature Coefficient | C0G, NP0 |
| Operating Temperature | -55°C ~ 200°C |
| Features | Low ESL (Stacked), High Temperature |
| Ratings | - |
| Applications | SMPS Filtering |
| Mounting Type | Through Hole |
| Package / Case | Stacked DIP, 8 Lead |
| Size / Dimension | 0.400" L x 0.440" W (10.16mm x 11.18mm) |
| Height - Seated (Max) | 0.390" (9.91mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.400" (10.16mm) |
| Lead Style | Straight |
| Failure Rate | - |
| Base Product Number | L1GN |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | L1GN30C205KA10 | L1GN30D334KA04 | L1GN30G204KA10 | L1GN40C474KA04 |
| Manufacturer | KEMET | KEMET | KEMET | KEMET |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP CER 2UF 500V C0G/NP0 20 LEAD | CAP CER 0.33UF 1KV C0G 20 LEAD | CAP CER 0.2UF 2KV C0G/NP0 20LEAD | CAP CER 0.47UF 500V C0G 8 LEAD |
| Series | KEMET | KEMET | KEMET | KEMET |
| Packaging | Tray | Tray | Tray | Tray |
