Product CatalogPart Number
L1I0-A940090020000
Manufacturer
LumiledsDescription
DOMED 90 DEG FOV
Datasheet
DatasheetPackage
3-SMD, No Lead
In Stock
76,943 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation

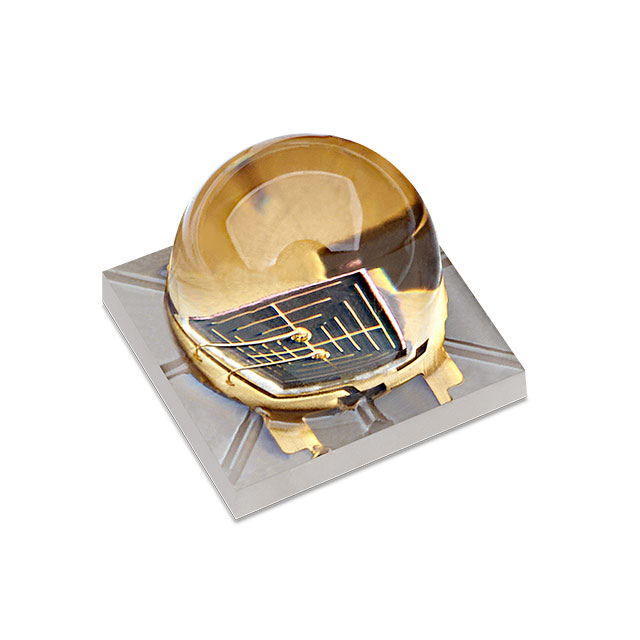

L1I0-A940090020000
L1I0-A940090020000
lmages are for reference only.Payment Methods
Delivery Services
Infrared (IR) Emitter 945nm 2.9V 1.5A 740mW/sr @ 1A (Typ) 90° 3-SMD, No Lead
Quick Inquiry
L1I0-A940090020000
Specifications
| Category | Optoelectronics - LED Emitters Infrared-UV-Visible - |
| Manufacturer | Lumileds |
| Series | LUXEON IR Domed Gen 2 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | L1I0 |
| Type | Infrared (IR) |
| Current - DC Forward (If) (Max) | 1.5A |
| Radiant Intensity (Ie) Min @ If | 740mW/sr @ 1A (Typ) |
| Wavelength | 945nm |
| Voltage - Forward (Vf) (Typ) | 2.9V |
| Viewing Angle | 90° |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 125°C (TC) |
| Mounting Type | Surface Mount |
| Package / Case | 3-SMD, No Lead |
| Grade | Automotive |
| Qualification | AEC-Q102 |
Parts with Similar Specifications
| Product Attribute | |
|
|
|
| Part Number | L1I0-A940050020000 | L1I0-A940060020000 | L1I0-A940135020000 | L1I0-A940145000000 |
| Manufacturer | Lumileds | Lumileds | Lumileds | Lumileds |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DOMED 50 DEG FOV | DOMED 60 DEG FOV | DOMED 135 DEG FOV | DOMED 145 DEG FOV |
| Series | LUXEON IR Domed Gen 2 | LUXEON IR Domed Gen 2 | LUXEON IR Domed Gen 2 | LUXEON IR Domed for Automotive |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
