L201204-333MHF
lmages are for reference only.L201204-333MHF
FIXED IND 33.75MH 1.3A 3.48 OHM
DatasheetRadial, Vertical Cylinder, 4 Leads (Open)
67,231 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
33.75 mH Unshielded Toroidal Inductor 1.3 A 3.48Ohm Max Radial, Vertical Cylinder, 4 Leads (Open)
L201204-333MHF
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | ITG Electronics, Inc. |
| Series | L201204 |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Toroidal |
| Material - Core | Alloy Powder |
| Inductance | 33.75 mH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.3 A |
| Current - Saturation (Isat) | 950mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 3.48Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 130°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder, 4 Leads (Open) |
| Supplier Device Package | - |
| Size / Dimension | 2.126" L x 0.992" W (54.00mm x 25.20mm) |
| Height - Seated (Max) | 2.193" (55.70mm) |
| Base Product Number | - |
| Product Attribute | |
 |
 |
 |
| Part Number | L201204-333MHF | L201204-101MHF | L201204-102MHF | L201204-161MHF |
| Manufacturer | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 33.75MH 1.3A 3.48 OHM | FIXED IND 106UH 24A 12.5MOHM TH | FIXED IND 1MH 8.2A 88 MOHM TH | FIXED IND 165UH 17A 23.5MOHM TH |
| Series | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| Packaging | Tray | Tray | Tray | Tray |

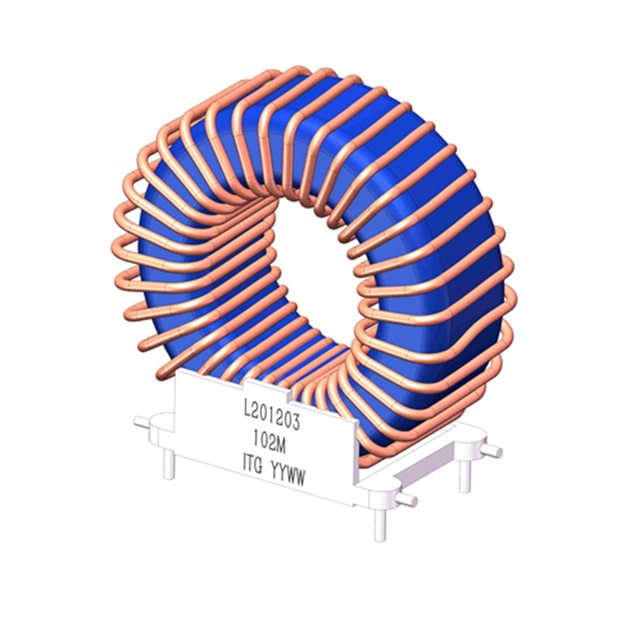

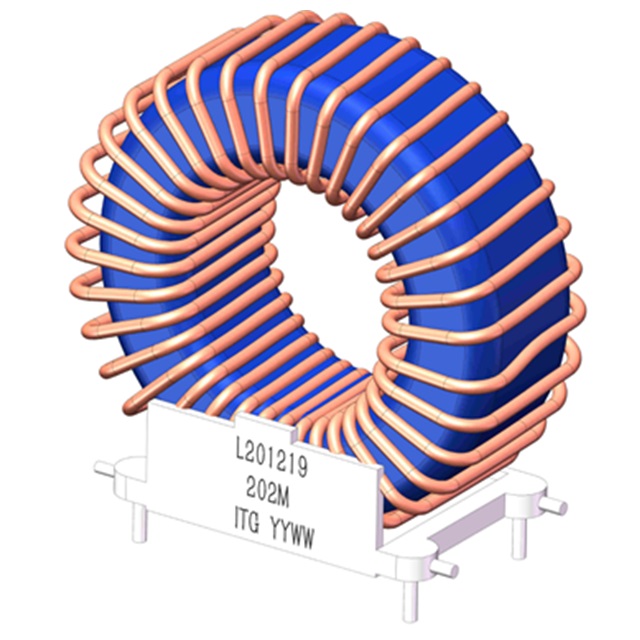

Recommended Products
