L254XF3S
lmages are for reference only.L254XF3S
RF FILTER LOW PASS 12.5GHZ 6SMD
Datasheet6-SMD, No Lead
68,652 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
25.4GHz Center Frequency Low Pass RF Filter (Radio Frequency) Bandwidth 1.6dB 6-SMD, No Lead
L254XF3S
| Category | Filters - RF Filters - |
| Manufacturer | Knowles Dielectric Labs |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Frequency | 25.4GHz Center |
| Bandwidth | - |
| Filter Type | Low Pass |
| Ripple | - |
| Insertion Loss | 1.6dB |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension | 0.220" L x 0.140" W (5.59mm x 3.56mm) |
| Height (Max) | 0.098" (2.49mm) |
| Base Product Number | L254XF |
| Product Attribute |  |
 |
 |
 |

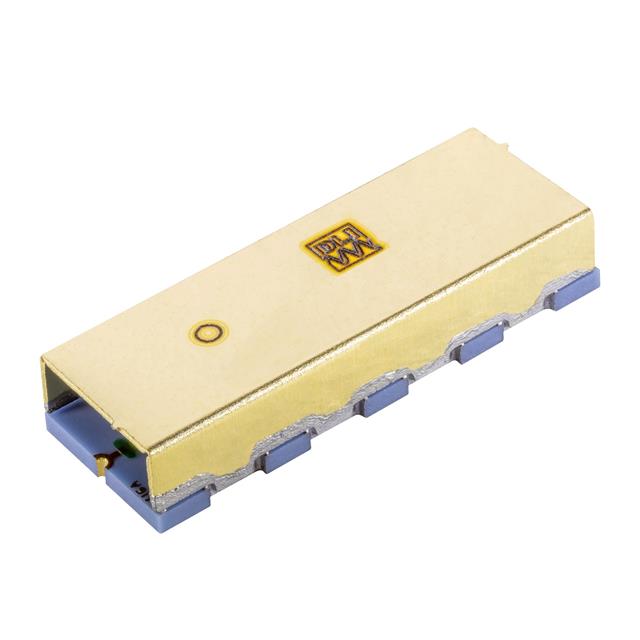

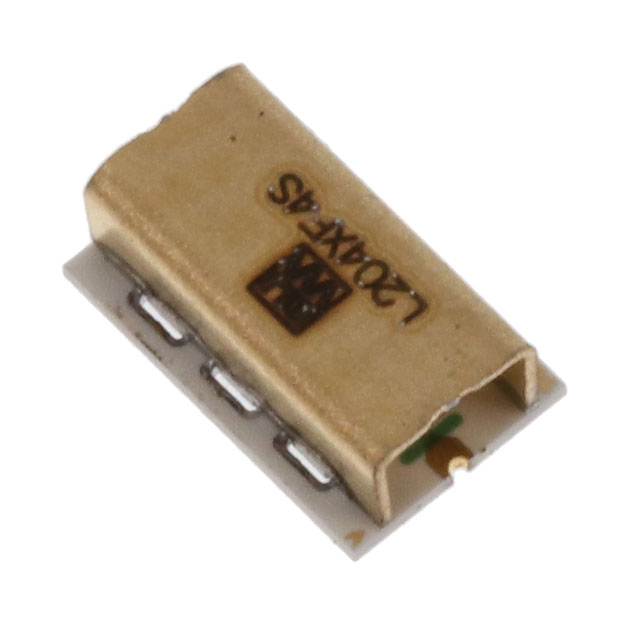

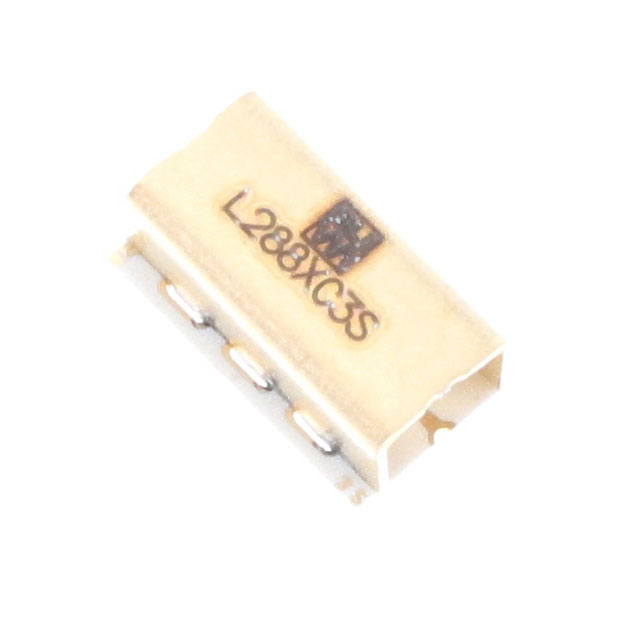

| Part Number | L254XF3S-T | L204XF4S | L204XF4S-T | L288XC3S |
| Manufacturer | Knowles Dielectric Labs | Knowles Dielectric Labs | Knowles Dielectric Labs | Knowles Dielectric Labs |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | RF FILTER LOW PASS 25.4GHZ 3SMD | RF FILTER LOW PASS 20.4GHZ 6SMD | RF FILTER LOW PASS 20.4GHZ 3SMD | RF FILTER LOW PASS 28.8GHZ 6SMD |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> | Bulk | Tape & Reel (TR)-->Cut Tape (CT)--> | Bulk |
