L301308-501K
lmages are for reference only.L301308-501K
500uH, 10%, 57.0mOhm, 11.4A. Ma
DatasheetHorizontal, 4 PC Pin
87,673 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services

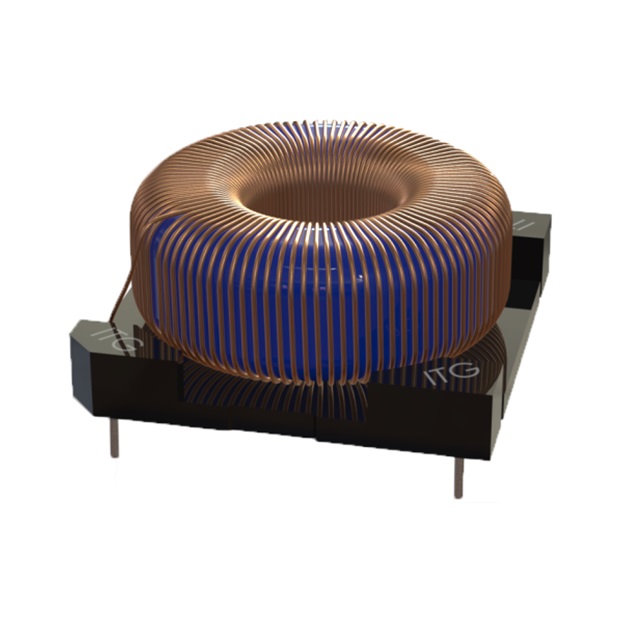

500 µH Unshielded Toroidal Inductor 11.5 A 57mOhm Max Horizontal, 4 PC Pin
L301308-501K
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | ITG Electronics, Inc. |
| Series | L301308 |
| Packaging | Tray |
| RoHS Status | RoHS Compliant |
| Type | Toroidal |
| Material - Core | Sendust |
| Inductance | 500 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 11.5 A |
| Current - Saturation (Isat) | 11.4A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 57mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 130°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Horizontal, 4 PC Pin |
| Supplier Device Package | Horizontal, 4 PC Pin |
| Size / Dimension | 2.106" L x 2.106" W (53.50mm x 53.50mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
|
 |
| Part Number | L301308-542K | L301307-182K | L301307-182K | L301307-222K |
| Manufacturer | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 5.4MH 2.2A 820MOHM TH | FIXED IND 1.8MH 4A 125 MOHM TH | FIXED IND 1.8MH 4A 125 MOHM TH | FIXED IND 2.2MH 3.5A 165MOHM TH |
| Series | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| Packaging | Tray | Tray | Tray | Tray |
