L301314A-101LHF
lmages are for reference only.L301314A-101LHF
100uH, 26mOhm, 3.2A Max. DIP To
DatasheetRadial, Horizontal, 4 Leads (Open)
16,040 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
100 µH Unshielded Toroidal Inductor 8 A 26mOhm Max Radial, Horizontal, 4 Leads (Open)

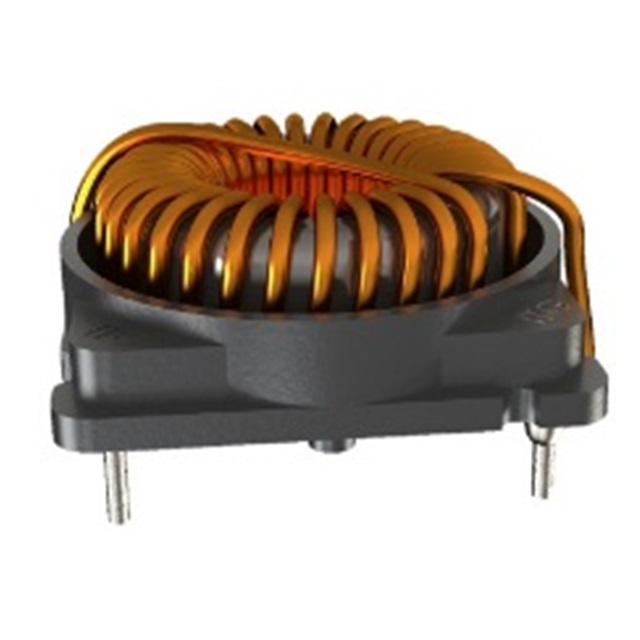

L301314A-101LHF
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | ITG Electronics, Inc. |
| Series | L301314A |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Type | Toroidal |
| Material - Core | Alloy Powder |
| Inductance | 100 µH |
| Tolerance | ±15% |
| Current Rating (Amps) | 8 A |
| Current - Saturation (Isat) | 3.2A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 26mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 130°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Horizontal, 4 Leads (Open) |
| Supplier Device Package | - |
| Size / Dimension | 1.142" L x 1.012" W (29.00mm x 25.70mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Base Product Number | - |
| Product Attribute | |
|
|
 |
| Part Number | L301314A-101LHF | L301314A-151LHF | L301314A-151LHF | L301314A-201LHF |
| Manufacturer | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | 100uH, 26mOhm, 3.2A Max. DIP To | 150uH, 43mOhm, 2.6A Max. Toroida | 150uH, 43mOhm, 2.6A Max. Toroida | 200uH, 75mOhm, 2.2A Max. Toroida |
| Series | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| Packaging | Bulk | Bulk | Bulk | Bulk |
