Product CatalogPart Number
L513LEC-15D
Manufacturer
American Opto Plus LEDDescription
LED RED CLEAR T-1 3/4 T/H
Datasheet
DatasheetPackage
Radial
In Stock
34,243 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
L513LEC-15D
L513LEC-15D
lmages are for reference only.Payment Methods
Delivery Services
Red 625nm LED Indication - Discrete 2.1V Radial
Quick Inquiry
L513LEC-15D
Specifications
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | American Opto Plus LED |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Color | Red |
| Configuration | - |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 7200mcd |
| Lens Style | Round with Domed Top |
| Lens Size | 5.00mm Dia |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Current - Test | 20mA |
| Viewing Angle | 15° |
| Mounting Type | Through Hole |
| Wavelength - Dominant | 625nm |
| Wavelength - Peak | 632nm |
| Features | - |
| Package / Case | Radial |
| Supplier Device Package | T-1 3/4 (5mm) |
| Size / Dimension | - |
| Height (Max) | 10.30mm |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

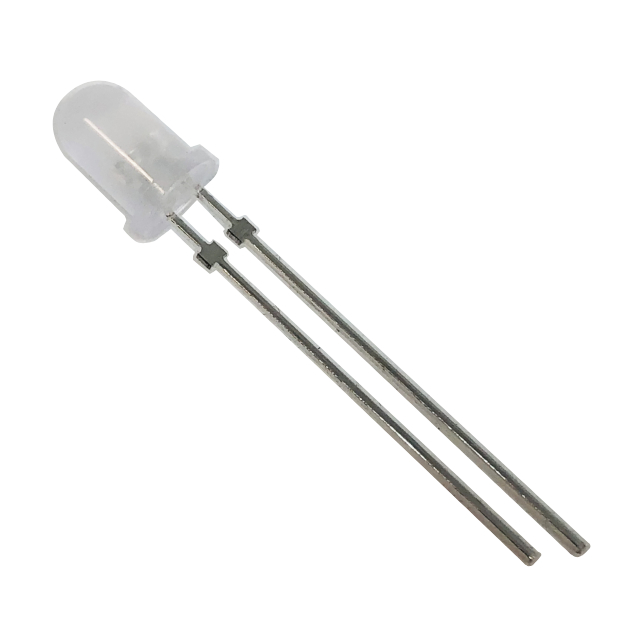

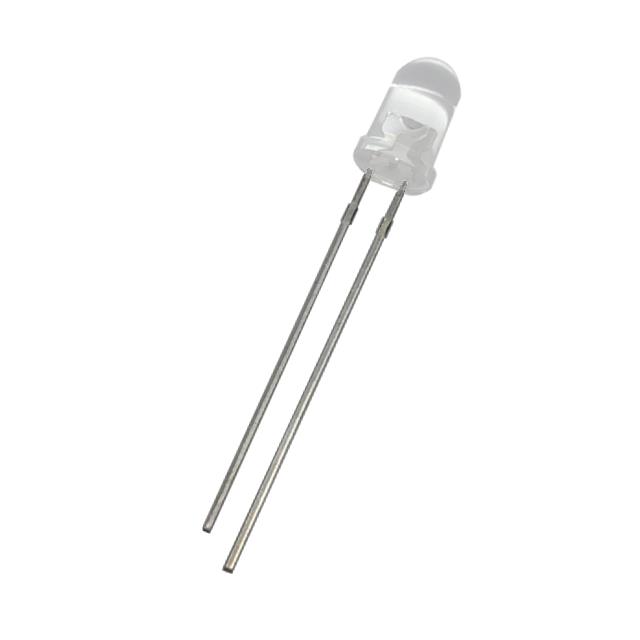

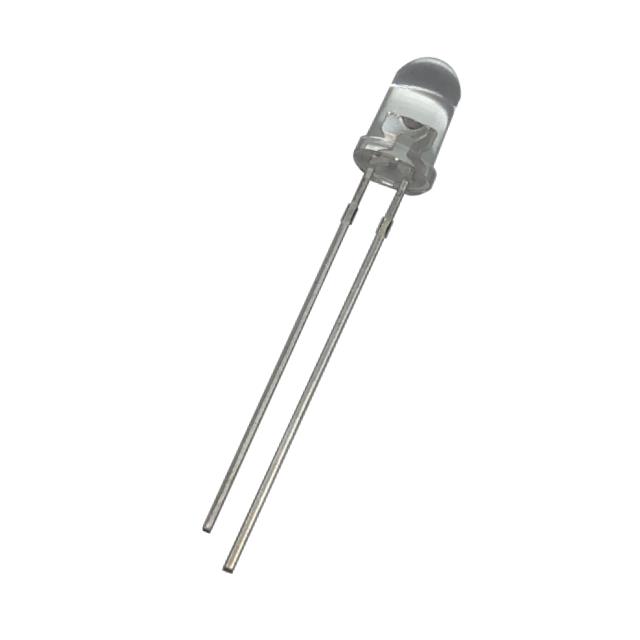

| Part Number | L513L-LWD10K34D | L513LBGW-S | L513LGC | LA E67B-V1AA-34-1-50-R18-Z |
| Manufacturer | American Opto Plus LED | American Opto Plus LED | American Opto Plus LED | ams-OSRAM USA INC. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED WHITE DIFFUSED T-1 3/4 T/H | LED BLUE-GREEN DIFF T-1 3/4 T/H | LED GREEN CLEAR T-1 3/4 T/H | LED AMBER CLEAR 4PLCC SMD |
| Series | American Opto Plus LED | American Opto Plus LED | American Opto Plus LED | ams-OSRAM USA INC. |
| Packaging | Bulk | Bulk | Bulk | Tape & Reel (TR) |
