L7815
lmages are for reference only.L7815
IC REG LINEAR 1.5A 15V TO-220
DatasheetTO-220-3
11,205 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 1.5A TO-220
L7815
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Lumimax Optoelectronic Technology |
| Series | L78 |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 35V |
| Voltage - Output (Min/Fixed) | 15V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 2V @ 1A |
| Current - Output | 1.5A |
| Current - Quiescent (Iq) | 8 mA |
| PSRR | 54dB (120Hz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -25°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 |
| Supplier Device Package | TO-220 |
| Base Product Number | - |
| Current - Supply (Max) | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | L7810CV | L7812 | L7812ABD2T | L7812ABD2T-TR |
| Manufacturer | STMicroelectronics | Lumimax Optoelectronic Technology | STMicroelectronics | STMicroelectronics |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant |

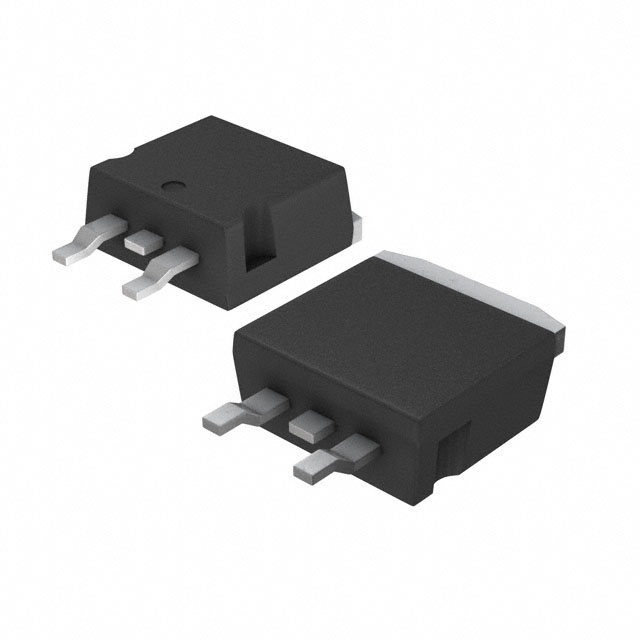

| Description | IC REG LINEAR 10V 1.5A TO220AB | IC REG LINEAR 1.5A 12V TO-220 | IC REG LINEAR 12V 1.5A D2PAK | IC REG LINEAR 12V 1.5A D2PAK |
| Series | STMicroelectronics | Lumimax Optoelectronic Technology | STMicroelectronics | STMicroelectronics |
| Packaging | Tube | Bulk | Tube | Tape & Reel (TR)-->Cut Tape (CT) |
