Product CatalogPart Number
LAA125P
Manufacturer
Littelfuse Inc.Description
SSR RELAY SPST-NO 170MA 0-350V
Datasheet
DatasheetPackage
8-SMD (0.300", 7.62mm)
In Stock
37,655 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
LAA125P
LAA125P

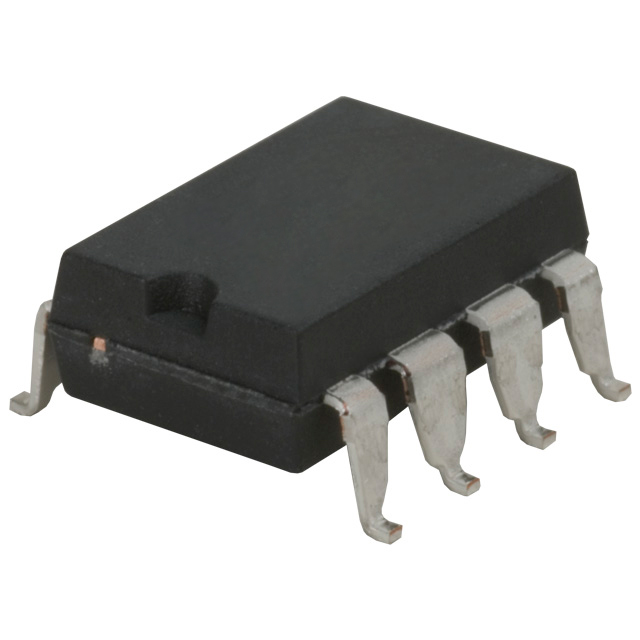

lmages are for reference only.Payment Methods
Delivery Services
Solid State SPST-NO (1 Form A) x 2 8-SMD (0.300", 7.62mm)
Quick Inquiry
LAA125P
Specifications
| Category | Relays - Solid State Relays SSR - |
| Manufacturer | Littelfuse Inc. |
| Series | LAA, OptoMOS® |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Surface Mount |
| Circuit | SPST-NO (1 Form A) x 2 |
| Output Type | AC, DC |
| Voltage - Input | 1.2VDC |
| Voltage - Load | 0 V ~ 350 V |
| Load Current | 170 mA |
| Termination Style | Gull Wing |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 8-SMD (0.300", 7.62mm) |
| Supplier Device Package | 8-Flatpack |
| Approval Agency | CSA, EN, UL |
| Grade | - |
| Qualification | - |
| Base Product Number | LAA125 |
| On-State Resistance (Max) | 16 Ohms |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | LAA125 | LAA125L | LAA125LS | LAA125LSTR |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SSR RELAY SPST-NO 170MA 0-350V | SSR RELAY SPST-NO 150MA 0-350V | SSR RELAY SPST-NO 150MA 0-350V | SSR RELAY SPST-NO 150MA 0-350V |
| Series | LAA, OptoMOS® | LAA, OptoMOS® | LAA, OptoMOS® | LAA, OptoMOS® |
| Packaging | Tube | Tube | Tube | Tape & Reel (TR) |
