Product CatalogPart Number
LAQ2D561MELA35
Manufacturer
NichiconDescription
CAP ALUM 560UF 20% 200V SNAP TH
Datasheet
DatasheetPackage
Radial, Can - Snap-In
In Stock
30,049 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
LAQ2D561MELA35
LAQ2D561MELA35
lmages are for reference only.Payment Methods
Delivery Services
560 µF 200 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C
Quick Inquiry
LAQ2D561MELA35
Specifications
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Nichicon |
| Series | LAQ |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.6 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.92 A @ 10 kHz |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Base Product Number | - |
| Impedance | - |
Parts with Similar Specifications
| Product Attribute | |
 |
|
 |

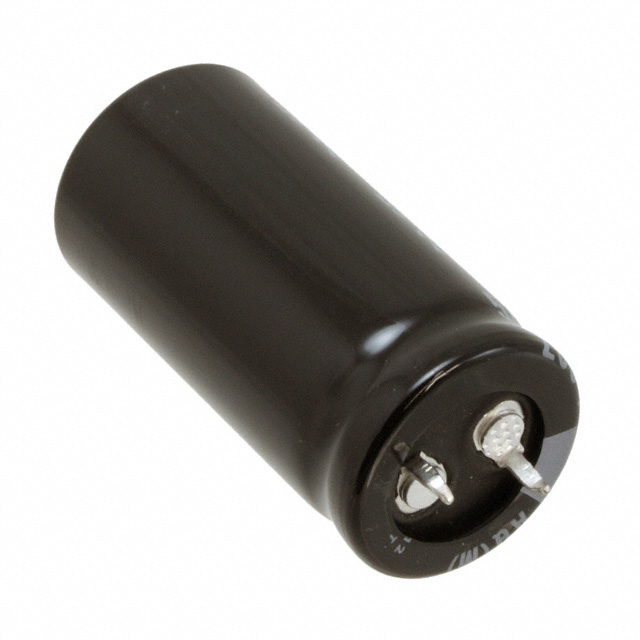

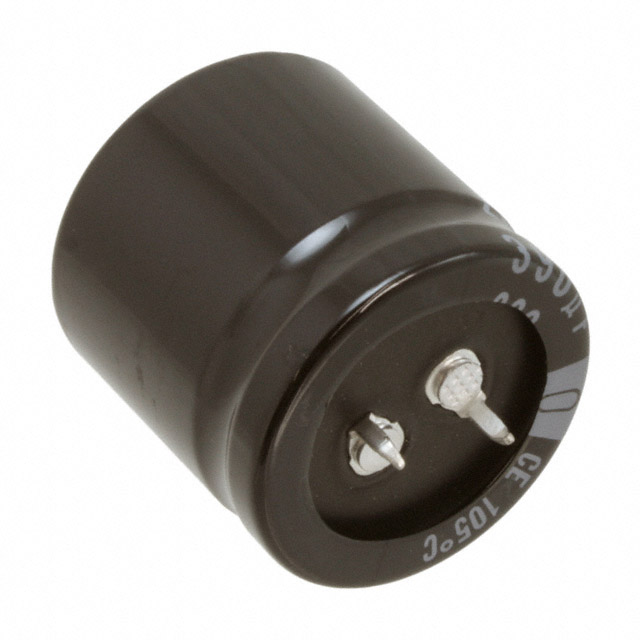

| Part Number | LAQ2D561MELA35 | LAQ2D561MELB30 | LAQ2D561MELB30 | LAQ2D561MELZ45 |
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 560UF 20% 200V SNAP TH | CAP ALUM 560UF 20% 200V SNAP TH | CAP ALUM 560UF 20% 200V SNAP TH | CAP ALUM 560UF 20% 200V SNAP TH |
| Series | Nichicon | Nichicon | Nichicon | Nichicon |
| Packaging | Bulk | Bulk | Bulk | Bulk |
