Product CatalogPart Number
LB3218T470K
Manufacturer
Taiyo YudenDescription
FIXED IND 47UH 205MA 920MOHM SMD
Datasheet
DatasheetPackage
1207 (3218 Metric)
In Stock
56,264 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
LB3218T470K
LB3218T470K
lmages are for reference only.Payment Methods
Delivery Services
47 µH Unshielded Wirewound Inductor 205 mA 920mOhm 1207 (3218 Metric)
Quick Inquiry
LB3218T470K
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Taiyo Yuden |
| Series | LB |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 47 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 205 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 920mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 12MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 2.52 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1207 (3218 Metric) |
| Supplier Device Package | 1207 (3218 Metric) |
| Size / Dimension | 0.126" L x 0.071" W (3.20mm x 1.80mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | LB3218T470KV | LB3218T470M | LB3218T470MV | LB3218T471K |
| Manufacturer | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 47UH 205MA 1.196OHM SM | FIXED IND 47UH 205MA 920MOHM SMD | FIXED IND 47UH 205MA 1.196OHM SM | FIXED IND 470UH 54MA 14 OHM SMD |
| Series | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
Customers Also Interested in
Recommended Products
LB3218T100K
Taiyo Yuden

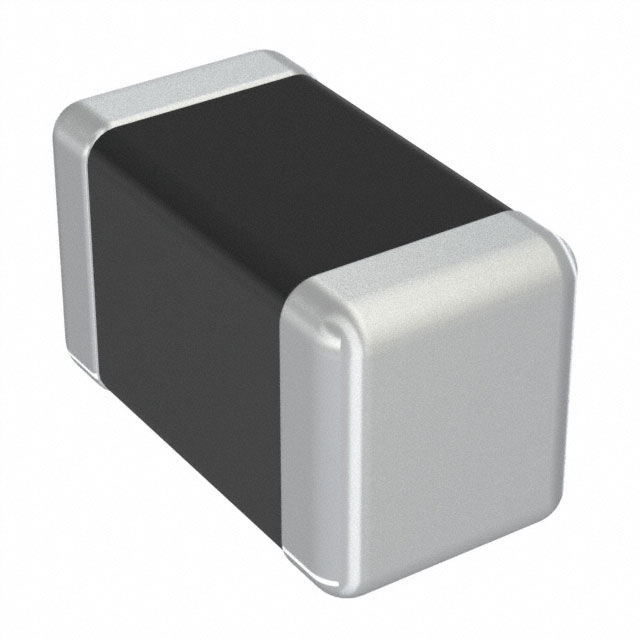

LB3218T100KV
Taiyo Yuden
LB3218T100M
Taiyo Yuden
LB3218T100MV
Taiyo Yuden
LB3218T100MV
Taiyo Yuden
LB3218T101K
Taiyo Yuden
LB3218T101KV
Taiyo Yuden
LB3218T101M
Taiyo Yuden

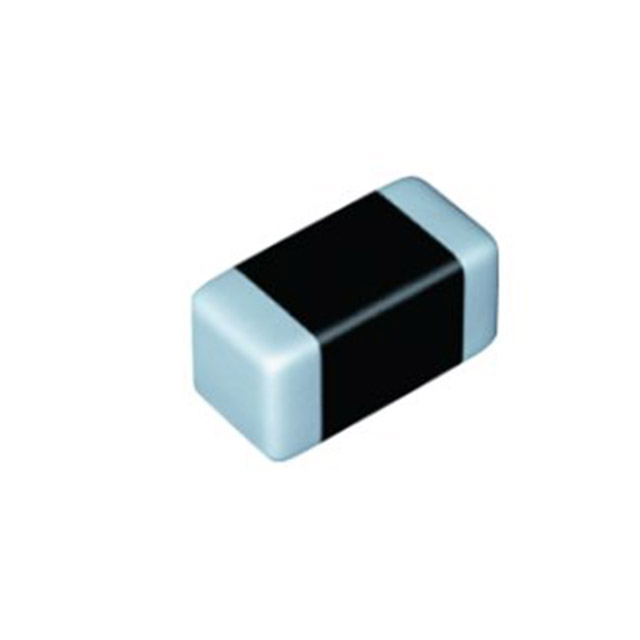

LB3218T101MV
