Product CatalogPart Number
LBRNJ10145GL471MN
Manufacturer
Taiyo YudenDescription
FIXED IND 470UH 520MA 1.236 OHM
Datasheet
DatasheetPackage
Nonstandard
In Stock
59,452 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
LBRNJ10145GL471MN
LBRNJ10145GL471MN

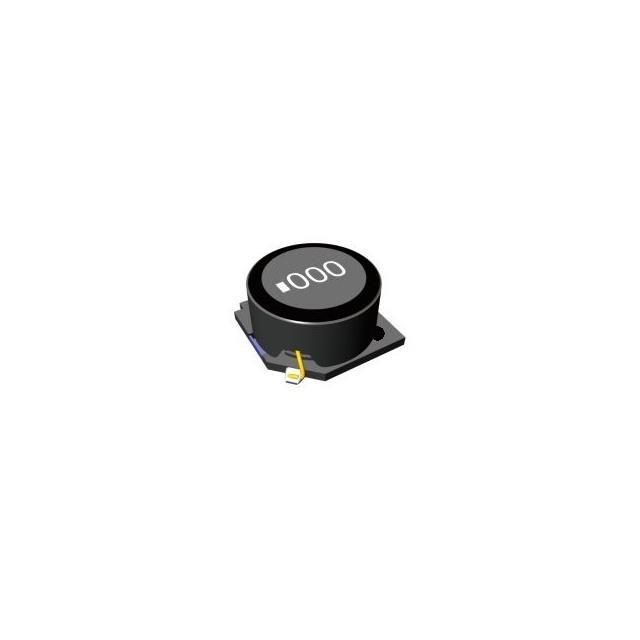

lmages are for reference only.Payment Methods
Delivery Services
470 µH Shielded Wirewound Inductor 520 mA 1.03Ohm Nonstandard
Quick Inquiry
LBRNJ10145GL471MN
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Taiyo Yuden |
| Series | LBRN |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 470 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 520 mA |
| Current - Saturation (Isat) | 610mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.03Ohm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.398" L x 0.398" W (10.10mm x 10.10mm) |
| Height - Seated (Max) | 0.191" (4.85mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute | |
 |
|
|
| Part Number | LBRNJ10145GL471MN | LBRNJ10145GL470MN | LBRNJ10145GL470MN | LBRNJ10145GL470MN |
| Manufacturer | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 470UH 520MA 1.236 OHM | FIXED IND 47UH 1.5A 156 MOHM SMD | FIXED IND 47UH 1.5A 156 MOHM SMD | FIXED IND 47UH 1.5A 156 MOHM SMD |
| Series | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
