Product CatalogPart Number
LCE14A-TP
Manufacturer
Micro Commercial CoDescription
Interface
Datasheet
DatasheetPackage
DO-201AE, Axial
In Stock
54,214 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
LCE14A-TP
LCE14A-TP
lmages are for reference only.Payment Methods
Delivery Services
23.2V Clamp 65A Ipp Tvs Diode Through Hole DO-201AE
Quick Inquiry
LCE14A-TP
Specifications
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Micro Commercial Co |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 14V |
| Voltage - Breakdown (Min) | 15.6V |
| Voltage - Clamping (Max) @ Ipp | 23.2V |
| Current - Peak Pulse (10/1000µs) | 65A |
| Power - Peak Pulse | 1500W (1.5kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | DO-201AE, Axial |
| Supplier Device Package | DO-201AE |
| Base Product Number | LCE14 |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | LCE14A | LCE14A/B | LCE14A/TR13 | LCE10 |
| Manufacturer | Littelfuse Inc. | YAGEO | YAGEO | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

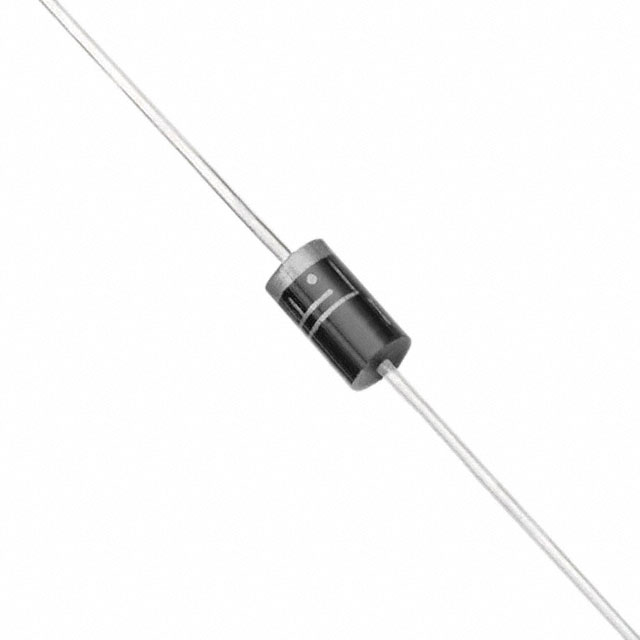

| Description | TVS DIODE 14VWM 23.2VC DO201 | TVS DO-201 14V 23.2V BOX | TVS DO-201 14V 23.2V 13 | TVS DIODE 10VWM 17.85VC DO201 |
| Series | Littelfuse Inc. | YAGEO | YAGEO | Littelfuse Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Box (TB) | Tape & Reel (TR) | Tape & Reel (TR) |
