LCXND6060WHL680MMG
lmages are for reference only.LCXND6060WHL680MMG
FIXED IND 68UH 770MA 546MOHM SMD
Datasheet2424 (6060 Metric)
12,177 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
68 µH Unshielded Wirewound Inductor 770 mA 420mOhm 2424 (6060 Metric)
LCXND6060WHL680MMG
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Taiyo Yuden |
| Series | LCXN |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 68 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 770 mA |
| Current - Saturation (Isat) | 800mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 420mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 5MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 2424 (6060 Metric) |
| Supplier Device Package | 2424 |
| Size / Dimension | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Height - Seated (Max) | 0.110" (2.80mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

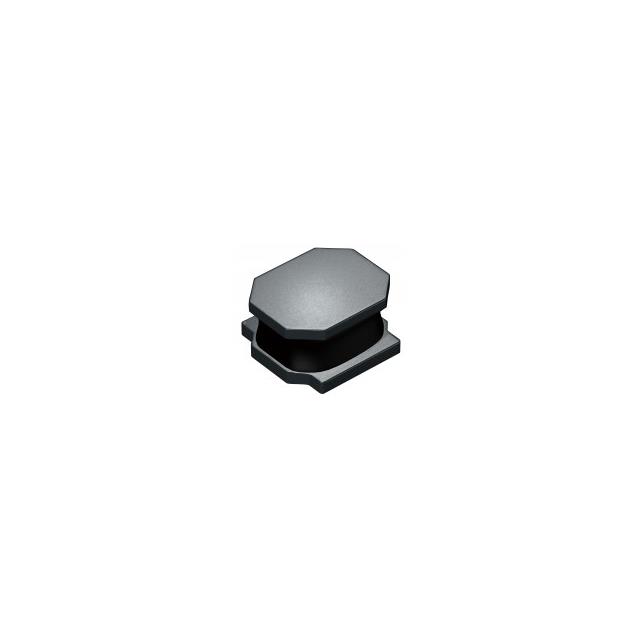

| Part Number | LCXND6060WHL0R9NMG | LCXND6060WHL100MMG | LCXND6060WHL101MMG | LCXND6060WHL150MMG |
| Manufacturer | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 900NH 4.6A 16.9MOHM SM | FIXED IND 10UH 1.9A 84.5MOHM SMD | FIXED IND 100UH 660MA 780MOHM SM | FIXED IND 15UH 1.8A 123.5MOHM SM |
| Series | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
